USED 2022 DOOSAN DNM 6700

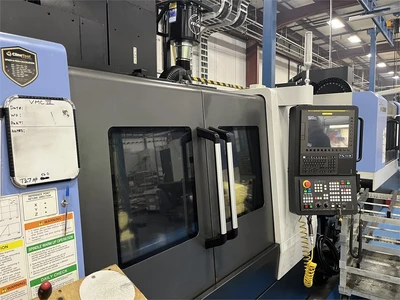

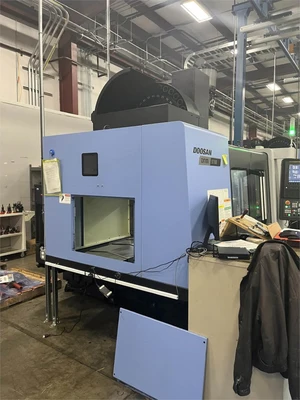

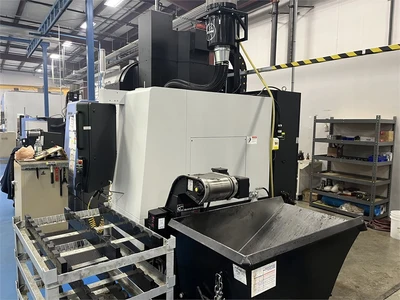

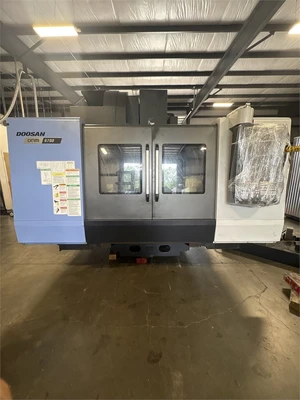

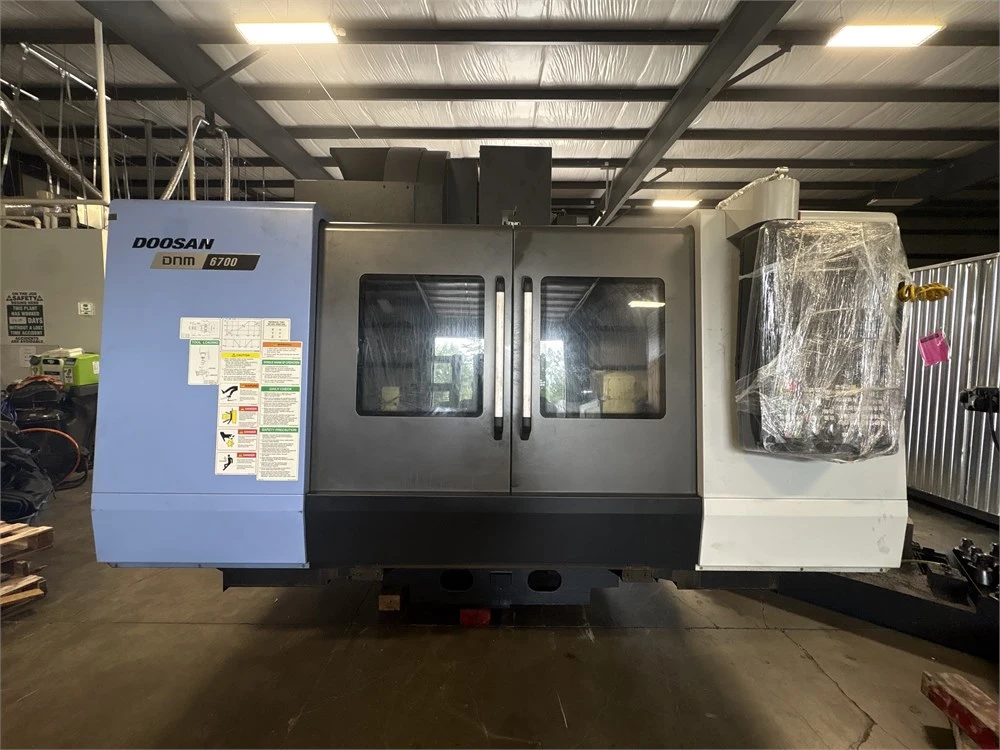

Doosan "DNM 6700" 4 Axis Vertical Machining Center (2022)

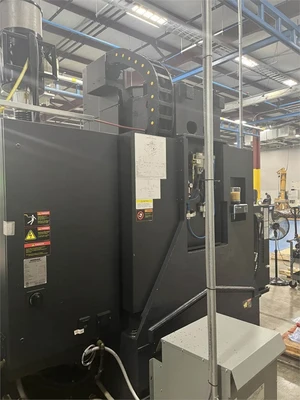

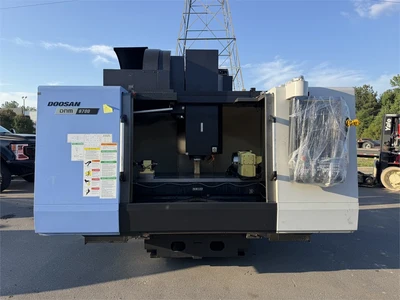

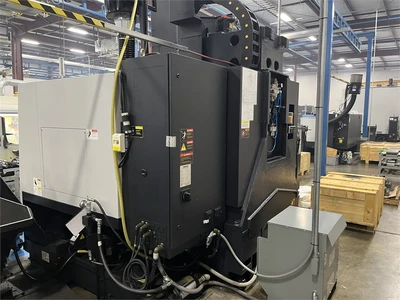

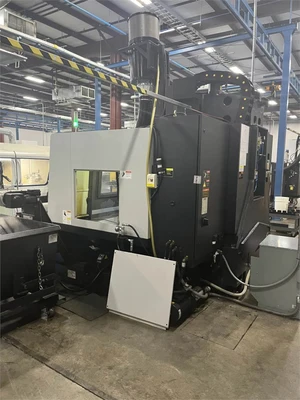

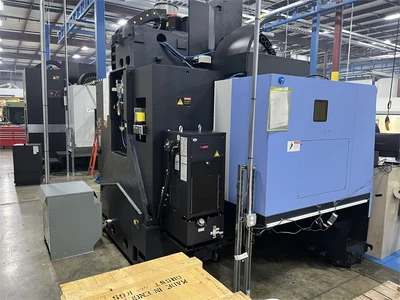

Machine has been prepared for shipping by rigger, see photos and video
3,446 Hours Approx.

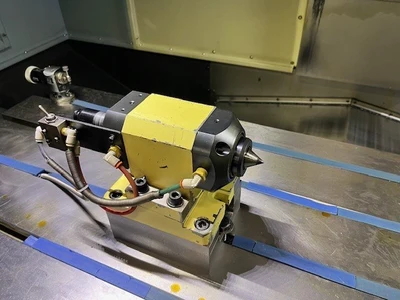

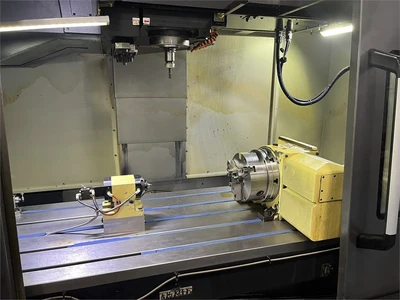

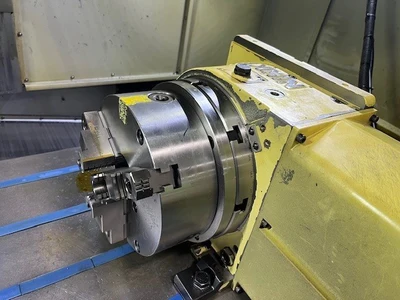

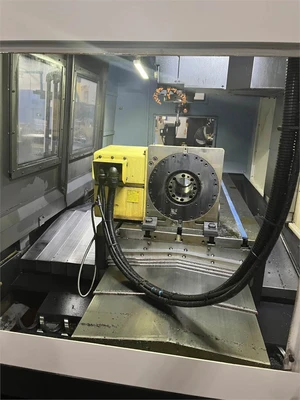

Thru spindle coolant, 4th axis, probing, tool setter
Travels
Rapid Traverse X-axis, 36 m/min (1417 in/min)
Rapid Traverse X-axis, 36 m/min (1417 in/min)
Rapid Traverse Y-axis, 36 m/min (1417 in/min)
Rapid Traverse Y-axis, 36 m/min (1417 in/min)
Rapid Traverse Z-axis, 30 m/min (1181 in/min)
Rapid Traverse Z-axis, 30 m/min (1181 in/min)
Travel Distance X-axis, 1300 mm (51.2 in)
Travel Distance X-axis, 1300 mm (51.2 in)
Travel Distance Y-axis, 670 mm (26.4 in)
Travel Distance Y-axis, 670 mm (26.4 in)
Travel Distance Z-axis, 625 mm (24.6 in)
Travel Distance Z-axis, 625 mm (24.6 in)

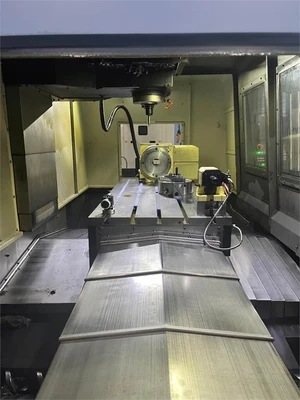

Table
Table Size, 1500 x 670 mm (59.1 x 26.4 in)
Table Size, 1500 x 670 mm (59.1 x 26.4 in)
Max Load, 1300 kg (2866 lbs)
Max Load, 1300 kg (2866 lbs)
Spindle to Table Distance, 150 - 775 mm (5.9 - 30.5 in)
Spindle to Table Distance, 150 - 775 mm (5.9 - 30.5 in)
Spindle
Speed, 12,000 rpm
Speed, 12,000 rpm
Power, 15HP
Power, 15HP
Torque, 118/286 Nm (87/211 ft-lbs)
Torque, 118/286 Nm (87/211 ft-lbs)
Tooling
Changer Capacity, 30
Changer Capacity, 30
Max Diameter, 80/125 mm (3.2/4.9 in)
Max Diameter, 80/125 mm (3.2/4.9 in)
Max Length, 300 mm (11.8 in)
Max Length, 300 mm (11.8 in)
Shank, BIG PLUS CAT40
Shank, BIG PLUS CAT40

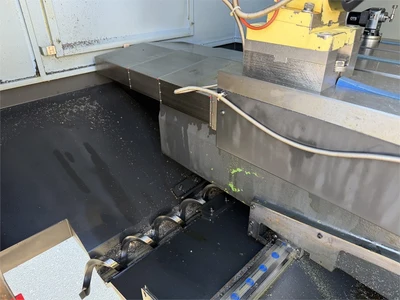

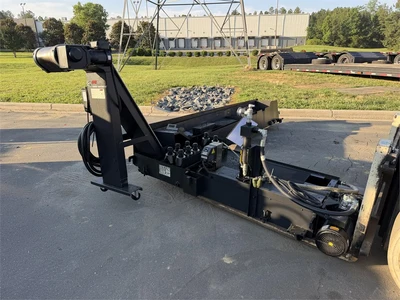

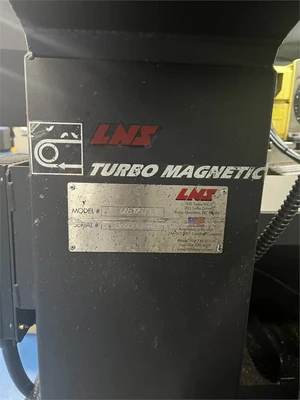

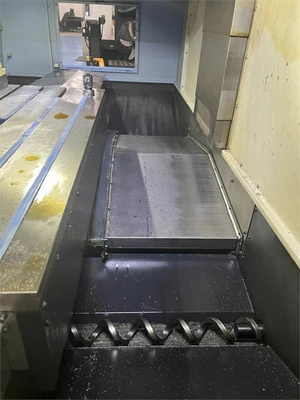

Chip conveyor
Sound enclosure

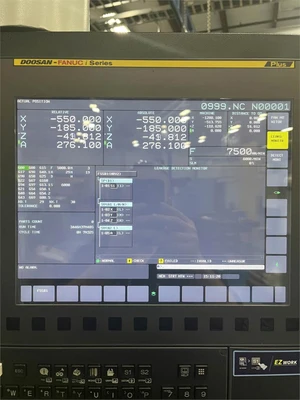

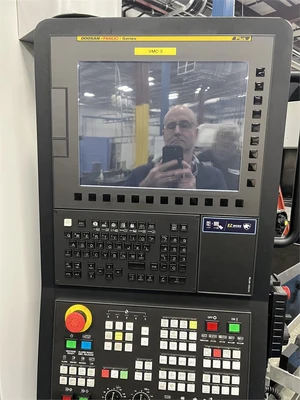

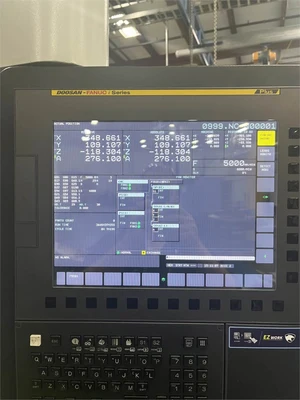

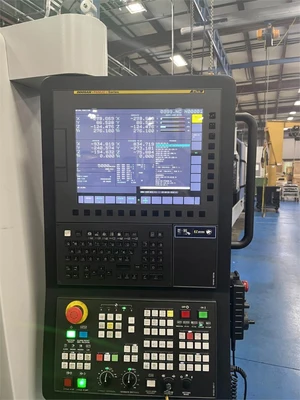

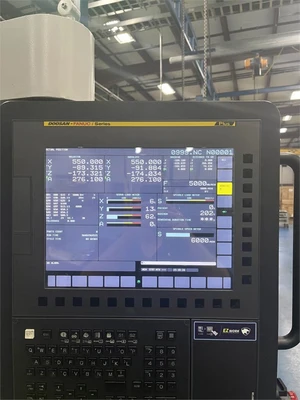

Fanuc controller with remote control pendant

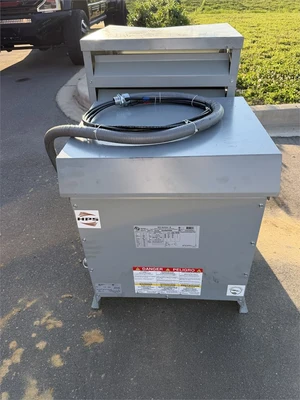

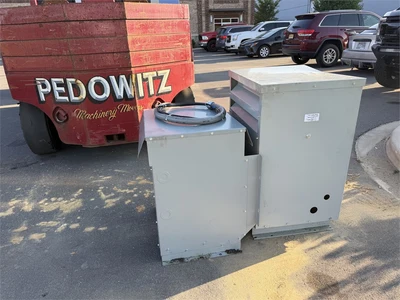

External electrical transformer

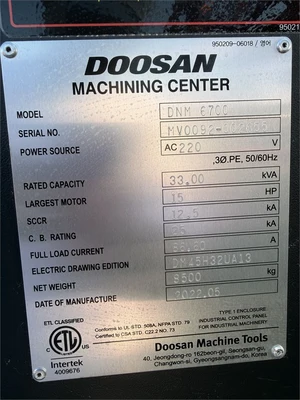

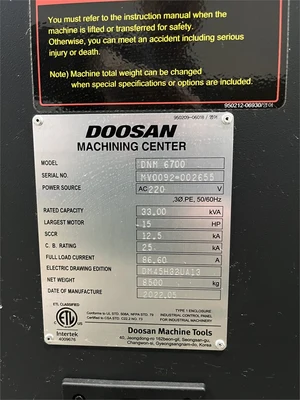

Phase: 3 PHASE
Voltage: 220 VOLT
Estimated Dimensions: 102"x132"x123"
Seller Comment: Loading and Delivery available from Pedowitz Machinery Movers.
Onsite Contact: Sabrina Correa, [email protected], 209-839-7707
Load Out Period: Within (2) weeks after purchase date
