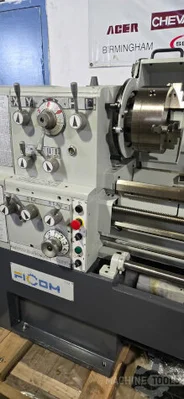

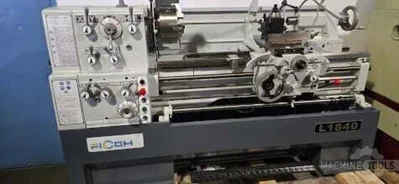

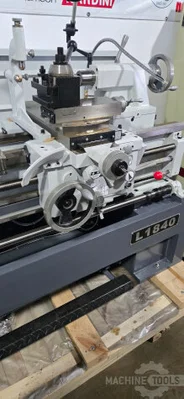

USED 2026 FICOM FICOM

18” X 40” Engine Lathe with SINO 2 - Axis Digital Readout, 10” 3 - Jaw Chuck, 12” 4 - Jaw Chuck, Face Plate, Thread Dial, Quick Change Toolpost with Holder, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.GENERAL SPECIFICATIONS Swing Over Bed:                        18.1”Swing Over Cross Slide:                    10.6”Swing in Gap X Width:                    27.1” X 6.5”Distance Between Centers:                    40”Spindle Hole:                            2-¼”Spindle Nose:                        D1-6 CamlockSpindle Speed Number:                    12Spindle Speed Range:                    25 - 2000 RPMInch Threads Number:                    60Inch Threads Range:                    2 - 112 tpiMetric Threads Number:                    41Metric Threads Range:                    .1 - 14mmFeeds Number:                        42Feeds Range (Longitudinal):                .0011” - .0633”Tailstock Taper:                        #4 MTTailstock Travel:                        5.12”Tailstock Diameter:                        2.36”Main Motor Power:                        7.5 HPCoolant Pump Motor:                    ⅛ HPApprox. Weight:                        4,202 LbsFloor Dimensions:                        87” X 43” X 54”INCLUDES: SINO 2 - Axis Digital Readout, 10” 3 - Jaw Chuck, 12” 4 - Jaw Chuck, Face Plate, Thread Dial, Quick Change Toolpost with Holder, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.
