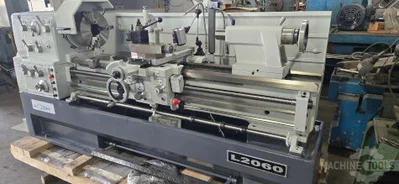

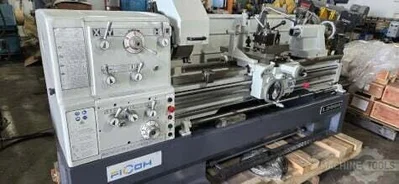

USED 2026 FICOM FICOM

20” X 60” Engine Lathe with SINO 2 - Axis Digital Readout, 12” 3 - Jaw Chuck, 16” 4 - Jaw Chuck, Faceplate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.GENERAL SPECIFICATIONS Swing Over Bed:                        20” Swing Over Cross Slide:                    12”Swing in Gap x Width:                    28.9” X 6.7”Distance Between Centers:                    60”Spindle Hole:                            3-⅛”Spindle Nose:                        D1-8 CamlockSpindle Speeds:                        12Spindle Speed Range:                    25 - 1600 RPMInch Thread - Number:                    60Inch Threads - Range:                    2 - 112 tpiMetric Threads - Number:                    47Metric Threads - Range:                    .2 - 14 mmFeeds - Number:                        35Feeds Range (Longitudinal):                .0022” - .0612”Tailstock Taper:                        #5 MTTailstock Travel:                        7”Tailstock Diameter:                        3”Main Motor Power:                        10 HPCoolant Pump Motor:                    ⅛ HPApprox. Weight:                        5,610 LbsFloor Dimensions:                        114” X 46” X 67”INCLUDES: SINO 2 - Axis Digital Readout, 12” 3 - Jaw Chuck, 16” 4 - Jaw Chuck, Faceplate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.
