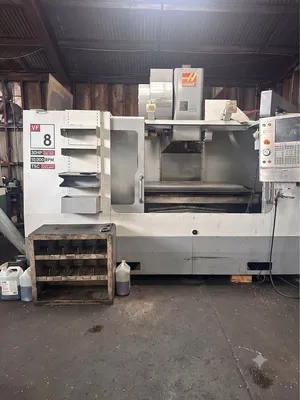

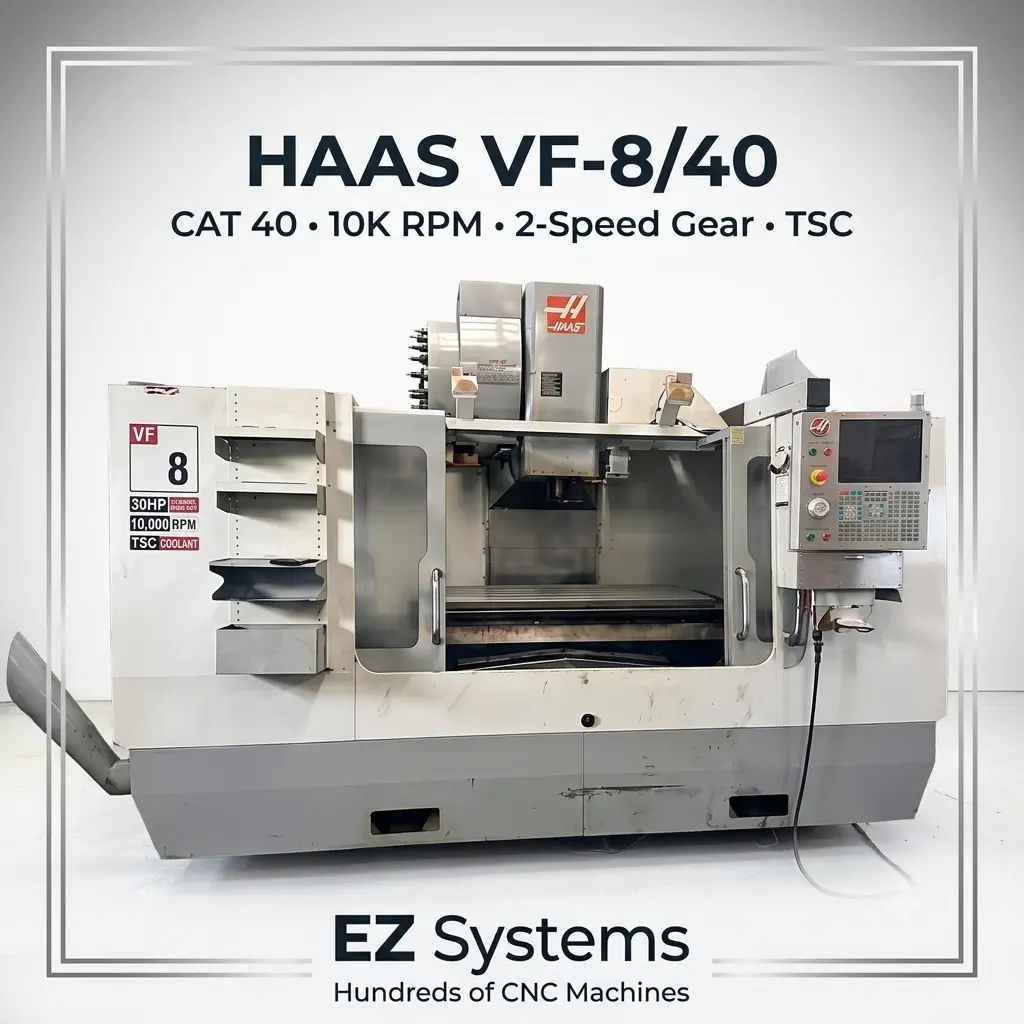

USED 2006 HAAS VF-8/40

2006 Haas VF-8 CAT 40 Vertical Machining Center with 10k RPM Spindle, 2-Speed Gearbox, and Through-Spindle Coolant FOB Lakewood, CA
🔷
Terms & Payment
Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.
🔷
Title: 2006 Haas VF-8 CAT 40 CNC Vertical Machining Center 10k RPM 2-Speed Gear TSC
Brand: Haas
Model: VF-8
Year: 2006
🔷
Specifications
Travels & Table
X-Axis Travel: 64"" (1,626 mm)
Y-Axis Travel: 40"" (1,016 mm)
Z-Axis Travel: 30"" (762 mm)
Table Size: 64"" x 36"" (1,626 mm x 914 mm)
Max Weight on Table: 4,000 lbs (1,814 kg)
Spindle Nose to Table: 4"" – 34""
Spindle & Motor
Spindle Taper: CAT 40
Spindle Speed: 10,000 RPM (upgraded via the 2-speed gear drive option visible on the housing)
Spindle Motor: 30 HP
Feedrates & Tool Changer
Rapid Traverse (X/Y/Z): 600 ipm (15.2 m/min)
Max Cutting Feedrate: 500 ipm (12.7 m/min)
Tool Changer Capacity: Typically 24+1 or 30+1 side-mount (standard was a 20-station umbrella if not optioned out)
Physical Dimensions & Weight
Machine Weight: ~24,800 lbs (11,249 kg)
Operating Footprint (L x W x H): Approx. 158"" x 115"" x 121"" (Note: Total length can extend up to ~193"" if a chip conveyor is installed)
Visible Factory Options
2-Speed Gear Drive (30 HP)
10,000 RPM High-Speed Spindle
TSC (Through-Spindle Coolant)
🔷
Description
Expand your machining capacity with this robust 2006 Haas VF-8 vertical machining center. Engineered to deliver reliable accuracy and heavy-duty performance, this machine is perfectly suited for larger parts and rigorous production demands. It provides the rigidity and high torque necessary to handle deep cuts across a broad variety of materials while maintaining smooth operation.
🔷
Key Features & Benefits
This model stands out with its premium factory options, including a high-speed 10,000 RPM spindle driven by a powerful 30 HP 2-speed gearbox that delivers exceptional low-end torque and high-speed precision. Equipped with Through-Spindle Coolant (TSC), it ensures optimized chip evacuation and long tool life. The expansive 64"" x 36"" table effortlessly handles large setups up to 4,000 lbs, making it a highly versatile asset for any production floor.
🔷
Dimensions & Weight
Physical Footprint: Approx. 158"" x 115"" x 121"" (Note: Total length can extend up to ~193"" if a chip conveyor is installed)
Weight: Approximately ~24,800 lbs (11,249 kg) lbs
Shipping & Location Details
🔷
Location: Lakewood, CA
This machine is offered FOB Lakewood, CA. Buyer is responsible for all applicable freight and rigging expenses.
🔷
Fair Sell Price Analysis
Market Context: This machine delivers excellent value for a large-envelope vertical machining center. Standard Haas VF-8 models often come with baseline configurations, but this unit features highly desirable factory add-ons like the 10k RPM high-speed spindle, the 2-speed gear drive, and through-spindle coolant. These performance features make it a smart investment that provides an immediate boost to your workshop's capabilities without the premium price tag of new equipment.
🔷
