Used

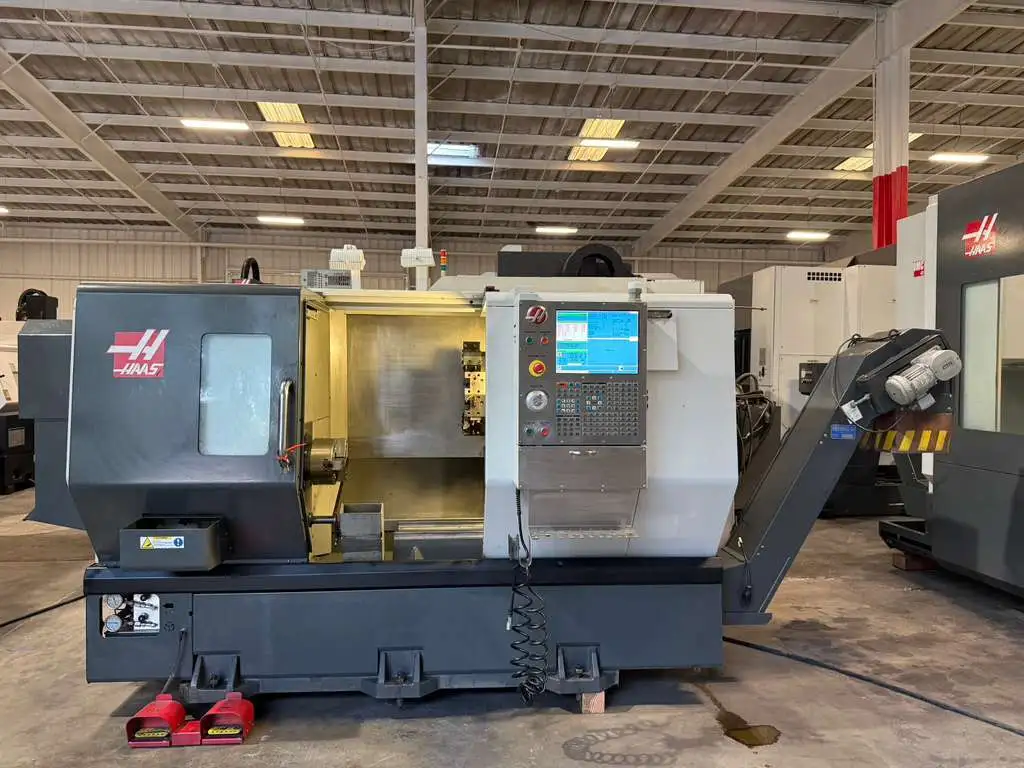

USED 2013 HAAS ST-20

California, United States
891Listings|289Followers
Overview
Specs
Swing
21"
533.4 mm
Machining Length
22.5"
571.5 mm
Max. Turning Length
13"
330.2 mm
Max. Turning Diameter
15"
381 mm
X-Axis
8.4"
213.36 mm
Z-Axis
22.5"
571.5 mm
# Axis
5
5
Chuck Size
8"
203.2 mm
Bar Capacity
2"
50.8 mm
Spindle Bore
2.5 in
Spindle Nose
A2-6
A2-6
Power
20 hp
14.9 kW
Max RPM
4,000 RPM
4,000 RPM
Turret Stations
12
12
Tailstock
Yes
Yes
Live Tooling
No
No
Dimensions
142.5″ x 90″ x 92″
142.5″ x 90″ x 92″
Weight
8,820 Lbs
8,820 Lbs
Equipped With

HAAS CNC Control
Rigid Tapping
Coolant Tank w/ Pump
Programmable Hydraulic Tailstock (Upgraded $8,695 value Included) – Excellent For Longer Parts
Belt Type Chip Conveyor (Upgraded $6,195 value Included) – For Efficient Chip Removal
Foot Switches
(3) Boring Tool Holders are Mounted on Turret
