USED 2011 +GF+ MIKRON HSM 500

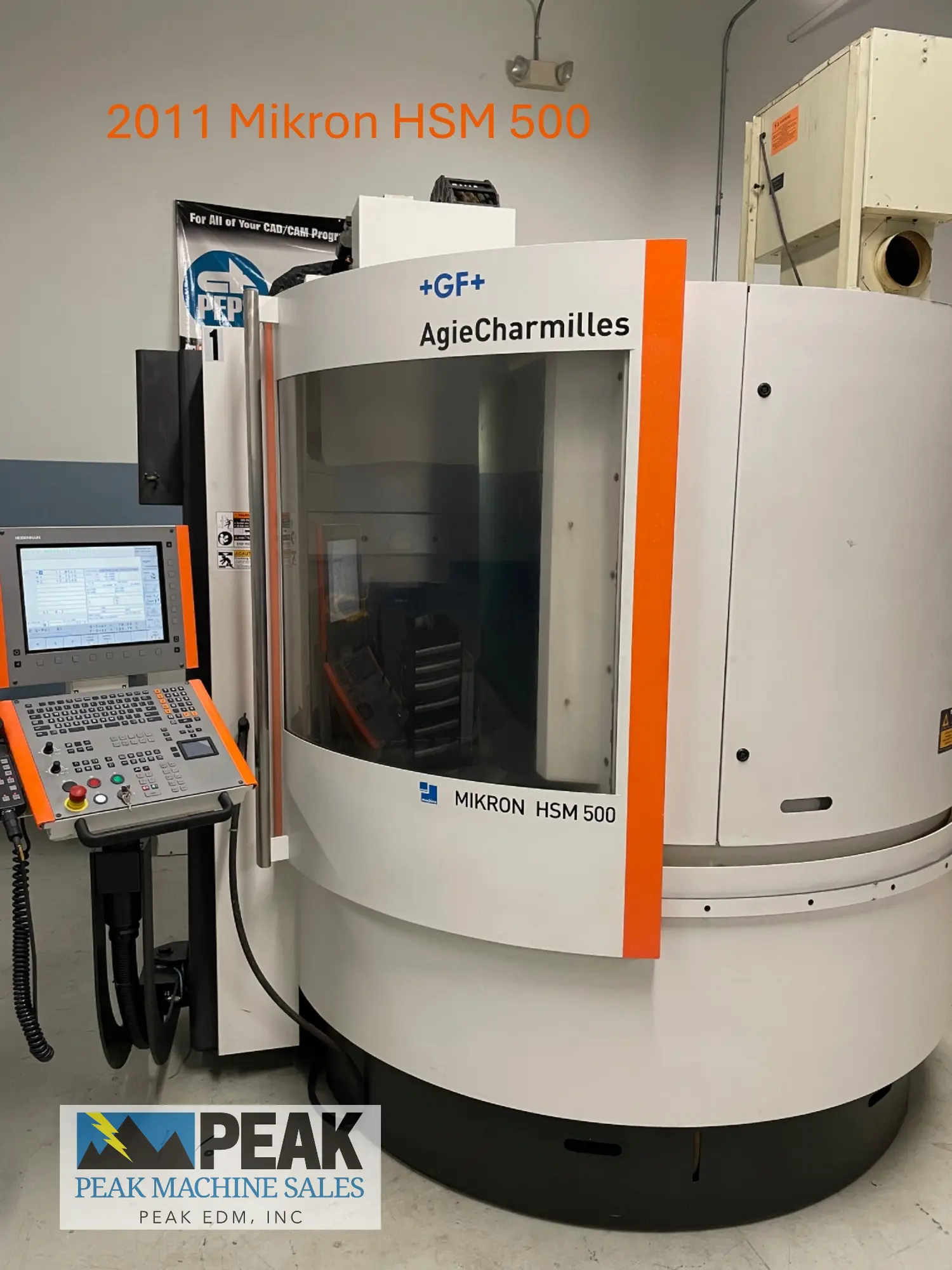

2011 MIKRON HSM 500 3 Axis Machining Center
Super Clean! Below average hours, 17,905 Program run time (1,279 yr).
Machine originally installed late Nov 2011.

Swiss Built! Ready for Production!

Travels: (X) 19.68” (Y) 17.72” (Z) 13.77”
40 Meter / Min Max Feed rate
Fresh 42,000 RPM Step Tec Spindle to be installed prior to delivery.

Featuring:

• Rugged monoblock portal design with a compact foot print
• Powerful integral spindles with vector control provide high torque at low speeds
• Tool changer with few moving parts
• Laser tool measuring standard
• High resolution glass scales on all axes
• Excellent access to working area for operator or crane loading
• Heidenhain Fast iTNC530 control
• Polymer concrete construction

Complete with:

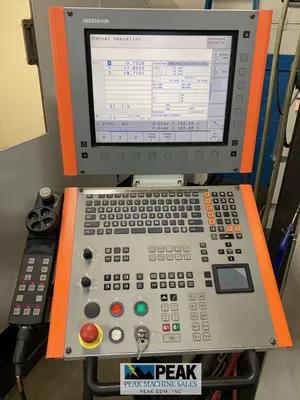

• Powerful Heidenhain iTNC 530 Control

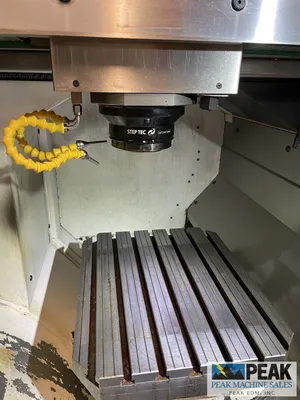

• Fresh 42,000 RPM Step-Tec HSK40 spindle
• 36 Position Automatic Tool changer
• Oil Mist Spray for Hard Milling
• Mistbuster mist extraction unit
• Blum Laser tool measuring system
• Infrared PS 32.00 touch probe

Ready to add dust extraction for graphite machining!

The HSM500 is based on a fixed portal design. This design minimizes the total floor space required by the machine and is very well suited for the production of high value components such as molds, electrodes and production parts. The portal and the base of the machine are made of polymer granite. This composite offers excellent vibration damping characteristics – approximately 10 times greater than cast iron and significantly better than welded construction. A high degree of damping is essential when working with high feed rates, high acceleration, and
requirements for superior surface finishes. The structure of the HSM500 makes it ideal for difficult applications, such as hard metal machining, where any transmitted vibration leads to increased wear or fracturing of the cutter. The entire machine weighs approximately 5500kg (12125 lbs).
The polymer concrete base has 10 times the dampening characteristics of cast iron. Also, polymer concrete is significantly more thermally stable then cast iron.
The worktable, X- axis, Y axis and Z-axis slides are made of high strength cast iron. These elements, reinforced by
longitudinal ribs and wide sections, assure that the machine components provide the necessary rigidity. The supporting areas of the guides are ground enhancing the total geometrical accuracy.
