USED 2022 DALLAS DRFHDS-660
Overview
Description

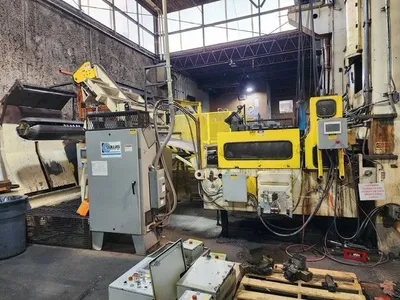

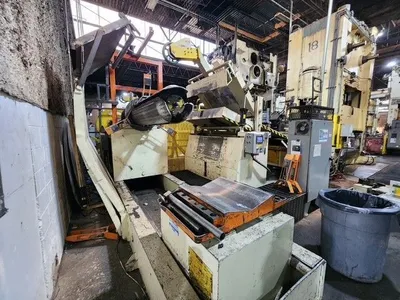

Dallas 60" wide x 30,000lbs Space Saver Coil Feed Line
60" wide x 0.090" thick
24" wide x 0.187" thick
Specifications
| Coil Weight Capacity | 30,000 lb | 13,607.8 kg |
|---|---|---|
| Stock Width Capacity | 60" | 1,524 mm |
| Max Stock Thickness Capacity at Full Width | 0.09" | 2.286 mm |
| Minimum Expansion Range | 20" | 508 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Coil weight capacity: 30,000 Lbs.
Coil width capacity: 60"
Stock thickness capacity: .090" x 60 Wide
Stock thickness capacity: .187" x 18 Wide
Expansion range: 20" - 24"
Coil OD capacity: 72"
Equipped With

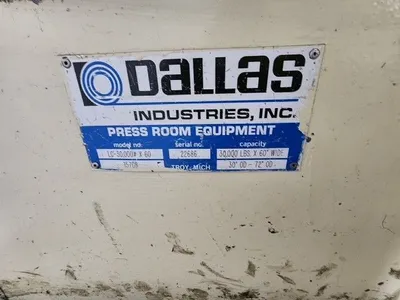

Dallas Coil Reel Uncoiler - Model: DPR 30000# x 60
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Motorized variable speed coil reel payout
Space saver loop control system
Dallas Traveling Coil Load Car - Model: LC-300
Coil load car track
Powered lift and travel
Narrow coil supports
Free standing coil hold down station
Hold down arm with motorized end wheel
Stock threading table
Stock peeler extension

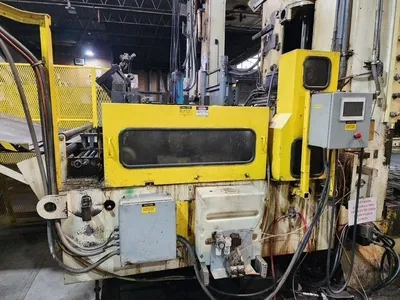

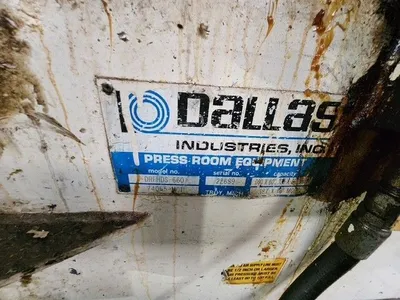

Dallas Servo Roll Feed Straightener Combination Press Feed - Model: DRFSH-660
Six inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot (dual cylinder)
Centralized lubrication points
Roller stock width edge guides with individual or unison upper roll adjustments
Cabinet base mounted with heavy duty pass line adjustment
Motorized pass line adjustment
Solenoid controlled pilot release
Air pressure/regulators flush mounted in cabinet base
Seven coil straightening rolls
Individual upper coil straightening roll adjustments
Motorized coil straightener pinch roll for stock threading
Air operated upper coil straightener pinch roll adjustment
Cascade loop support rollers Stock width reference scale

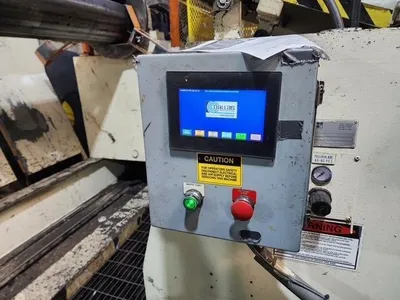

AC servo roll feed drive and controls
