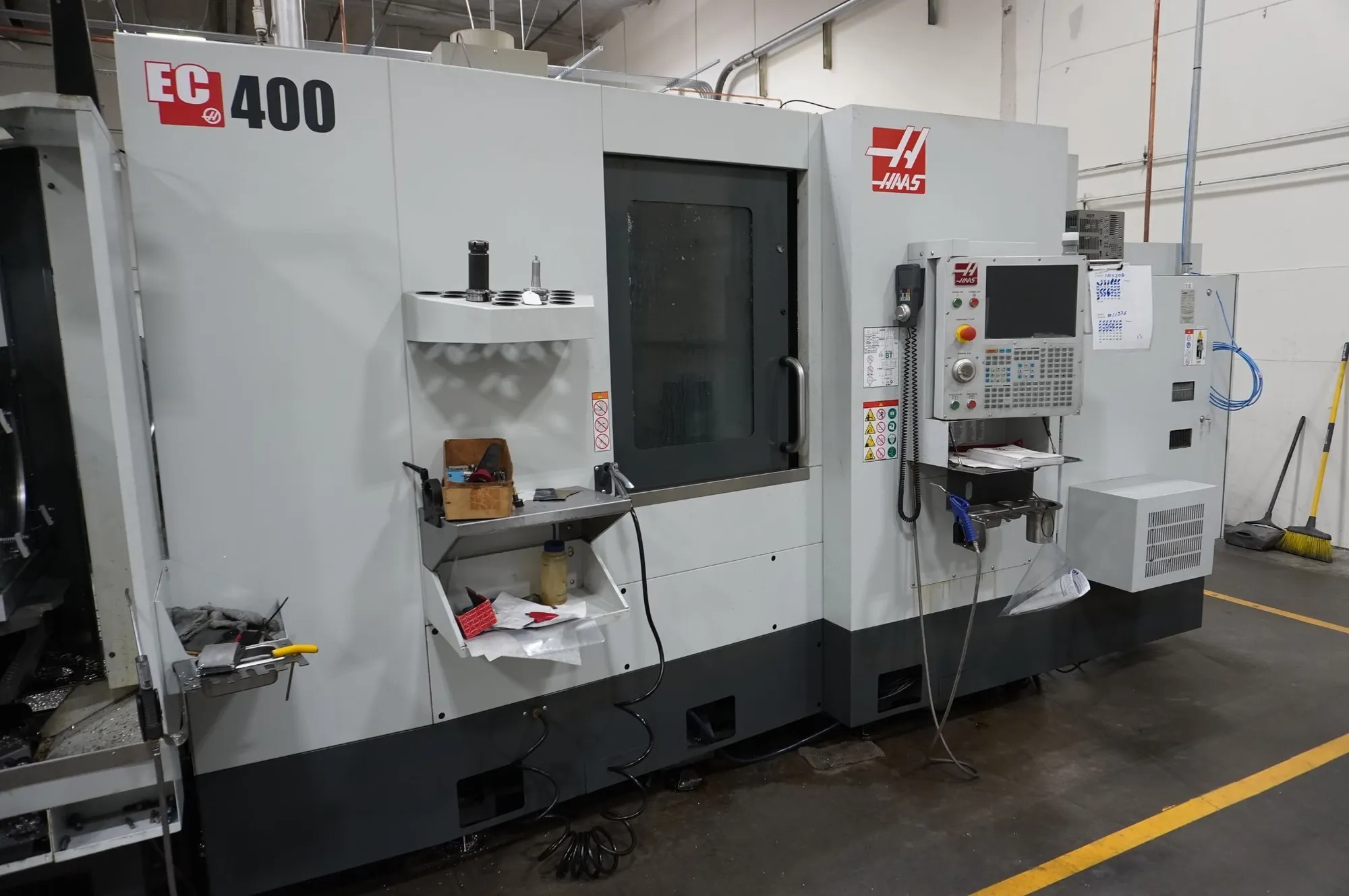

USED 2019 HAAS EC-400PP 6-PALLET
Overview
2019 HAAS EC-400PP CNC Machining Center: Features 6-pallet system, 100 ATC, full 4th axis, high-speed machining, 12,000 RPM spindle, and chip conveyor. Robust performance with 30 HP motor, 22" x 25" x 22" travel, and 880 lbs max pallet load.
Specs
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Pallet Load: 880 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 100 ATC
Max Tool Length: 12"
Max Tool Diameter: 3-6"
Tool to Tool Time: 2.8 Seconds
Pallet Change Time: 15 Seconds
Spindle Nose to Pallet Center Distance: 3.9"-23.9"
Spindle Center to Pallet Distance: 2.1"-22.1"
Pallet Size: 15.75" x 15.75"
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
Equipped With
6 PALLET APC
WIPS PROBING
CHIP CONVEYER
100 ATC
FULL 4TH AXIS
WIPS PROBING
300 PSI COOLANT THROUGH
12000 RPM SPINDLE
HIGH SPEED MACHINING
VPS EDITING
COMPENSATION TABLES
M19 SPINDLE OREIENT
