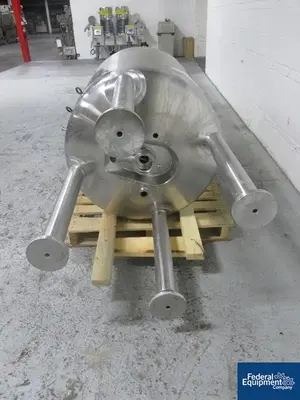

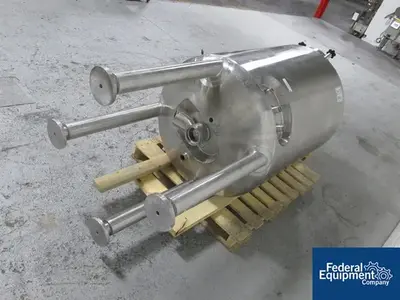

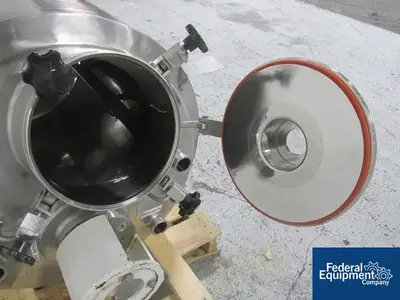

Used 100 gal Apache reactor, stainless steel construction, 30" diameter x 42" straight side, dish top and bottom, internal and jacket rated 40 psig and full vacuum at 300 F, 12" accessway on top with (6) 2" and (1) 4" nozzles on top, (3) 1" NPT nozzles on side bottom, 2" center bottom outlet, on legs, national board# 806, serial# 10691, built 2001.
Year of Construction: 2001
Material of Construction: Stainless Steel
Capacity (Gallons): 100
Serial Number: 10691
Jacket Pressure: 40
Jacketed: True
National Board Number: 806
Vacuum Rated: True
Internal Pressure (PSI): 40
