USED 2000 SOCO MC-275AC

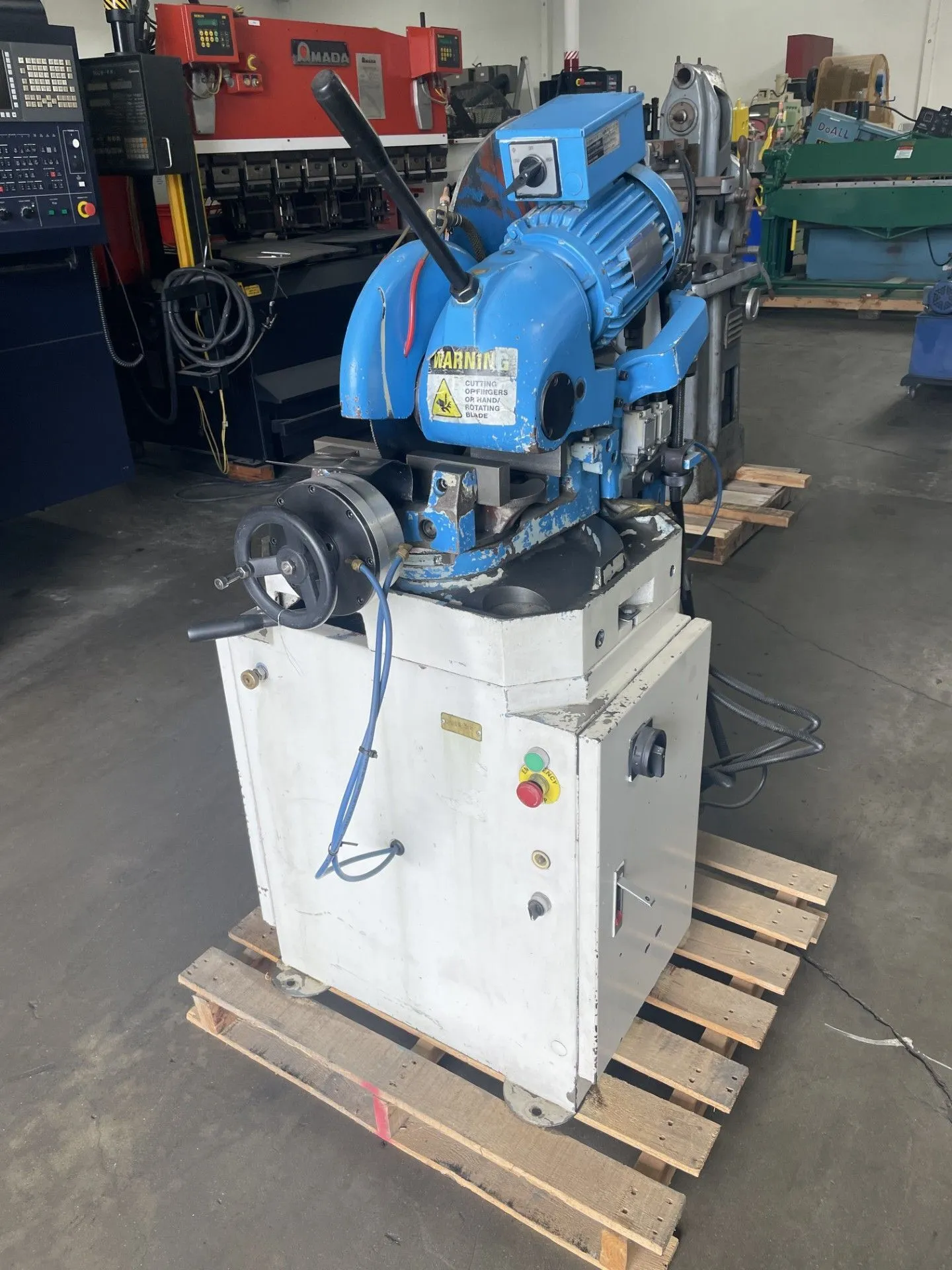

2000 SOCO MC-275AC Semi Automatic Cold Saw #8238 #1

SPECIFICATIONS:
SAW BLADE: Maximum Diameter 12″ (300mm)
CUTTING CAPACITY at 90 degrees Round, Tube at 90º straight up to 3.25″
(81mm) at 45º mitre up to 2.5″
(63.5mm) Round, Solid at 90º straight up to 2.5″
(63.5mm) Square, Tube at 90º straight up to 3″ x 3″ (75 x 75mm) at 45º mitre up to 2.0″
(50mm) Square, Solid at 90º straight up to 1⅝” x 1⅝”
(41 x 41mm) Rectangle Tube, at 90º straight up to 3.25″ x 3”
(81 x 75mm) at 45º mitre up to 2.5” x 2″ (63.5 x 50mm)
VISE OPENING 4″ (100mm)
SAW HEAD DOWN FEED: Automatic by Pneumatic Cylinder and Manually by Hand DRIVES: Wired 220 volts, 3- Phase Motor to Direct Drive Gear Box 1.4 hp / 1hp (1.5 / 0.74 kw/) 220v, 3-Phase Coolant Pump 1/8 hp, (092kw) 2230v, 3-Phase
CONTROLS: Controls Wired 115 volts Power On/Off Buttons.

EQUIPPED WITH:
Semi-Automatic Operations
Automatic Clamping
Coolant Pump an Tank Material Support Block
In-Feed Roller Conveyors Size 10″ wide x 59″ Long 1-section
Out-Feed Roller Conveyor Size 10″ wide x 129″ long with Adjustable Stop

COMPLETE FACTORY SAFETY GUARDS

Dimensions: 28″ Wide x 39″ F-B x 65″ Height (711.2 W x 990.6 FB x 1,651mm Ht) Approximate Weight 900 lbs.
