USED 2015 TSUGAMI MO8SY
Overview

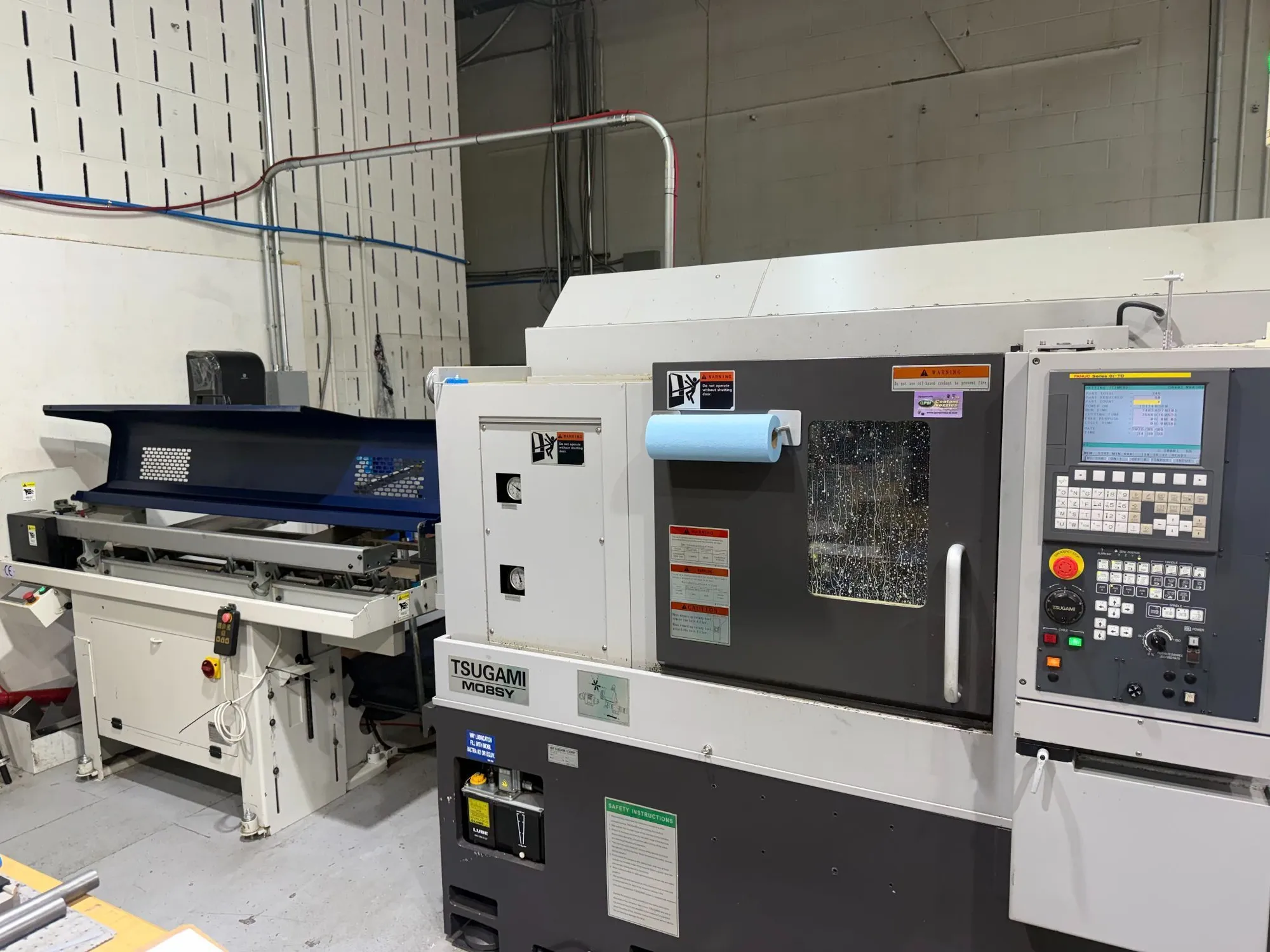

Used 2015 TSUGAMI M08SY 5-axis CNC Lathe, featuring Fanuc 0i-TD control, chip conveyor, and misc tooling. With a 14.8 HP spindle motor, it offers 5,000 RPM live tooling and bar capacity up to 2". Ideal for versatile machining needs.
Specs
Bar Capacity: 2″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS
Equipped With
Control: Fanuc 0i-TD
Edge Short Loader
Chip Conveyor
Royal Collet chucks on both spindles.
3 jaw chucks for both spindles
Misc Tooling Included
Ran Plastic Aluminum, 1018 and 303SS
