USED 2011 SOUTHWESTERN INDUSTRIES TRAK LPM

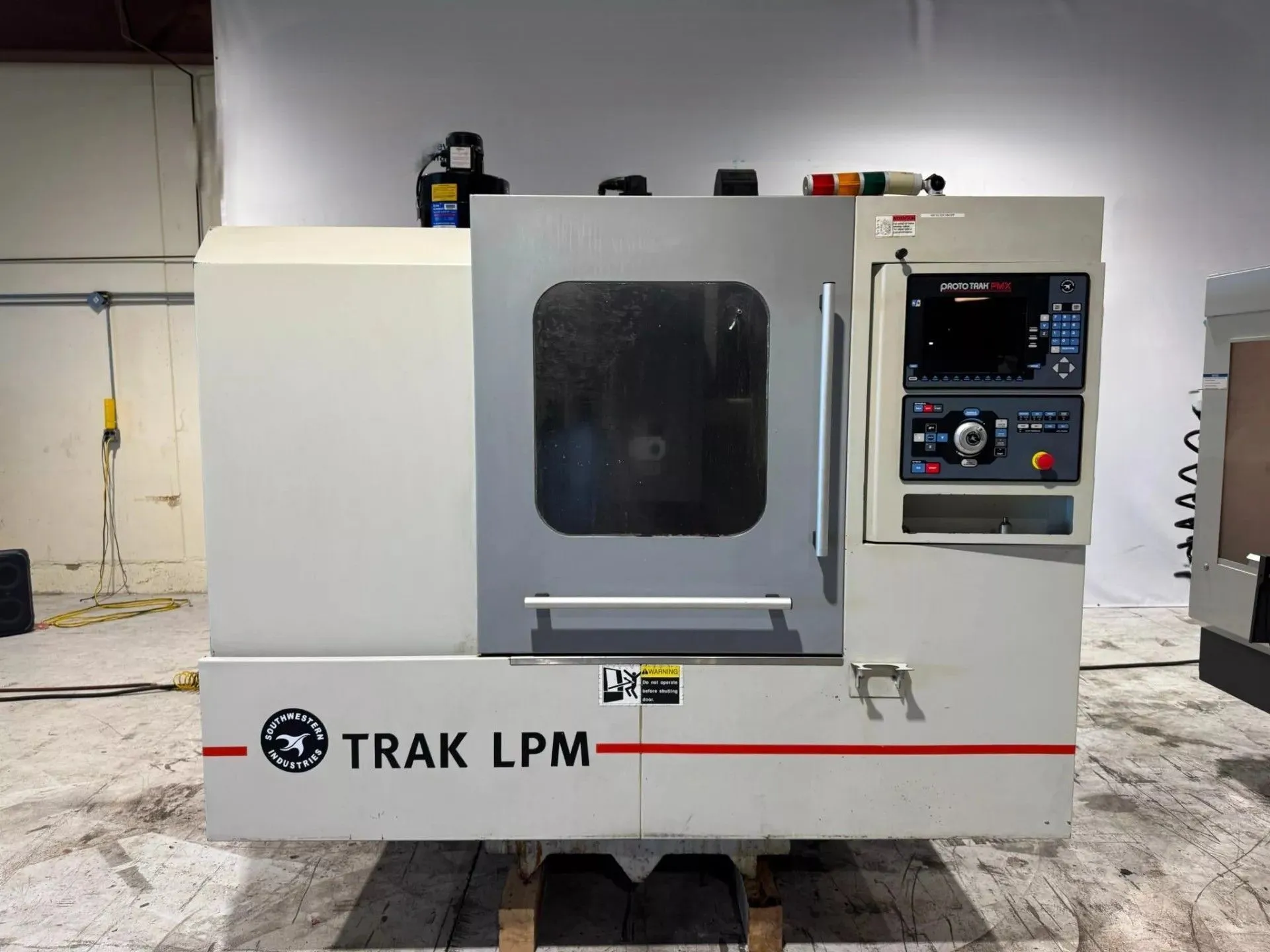

2011 Southwestern Industries Trak LPM Vertical CNC Machining Center,
S/N 114DJ64231
Machine Specifications (2011 Model):
Model: TRAK LPM (Southwestern Industries)
Control: ProtoTrak PMX CNC
Travels (X/Y/Z): 31" x 18.5" x 21"
Table Size: 35-3/8" x 19-5/8"
Table Capacity: 1,000 lbs
Tee-Slotted Table with Jergens Ball Lock System
Spindle Speed: 8,000 RPM Max
Spindle Taper: CT 40
Wired for 4th Axis
Spindle Motor: 15 HP Peak / 10 HP Continuous
Tool Changer: 16 Stations (Carousel)
Max Tool weight 15 Lbs.
Rapid Traverse (X/Y/Z): 800 / 800 / 700 IPM
Chip Auger
DXF Input [ conversational mode ]
Weight: Approx. 7,650 lbs
Dimensions: ~113"L x 88"W x 98"H
Power Requirement: 208-240V / 3 Phase / 70-78 FLA

Key Features:
Stage Mode: Allows programming the next part while the current one is cutting.
Capabilities: Includes rigid tapping, air blast, coolant pump, and chip auger.
