USED 1989 SHARP RD-820
Overview
Specifications
| Arm Length | 33.5" | 0.9 m |
|---|---|---|
| Column Dia. | 8.29" | 210.57 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Dimensions | 66'' × 32'' × 87'' | 66'' × 32'' × 87'' |
| Weight | 3100 | 3100 |

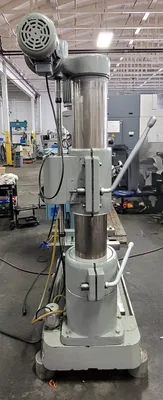

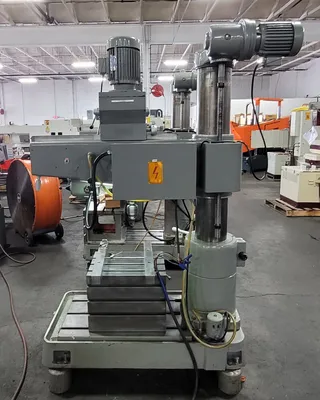

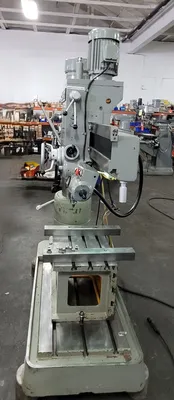

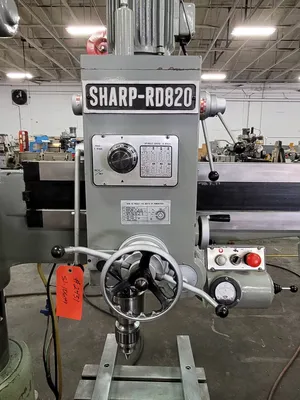

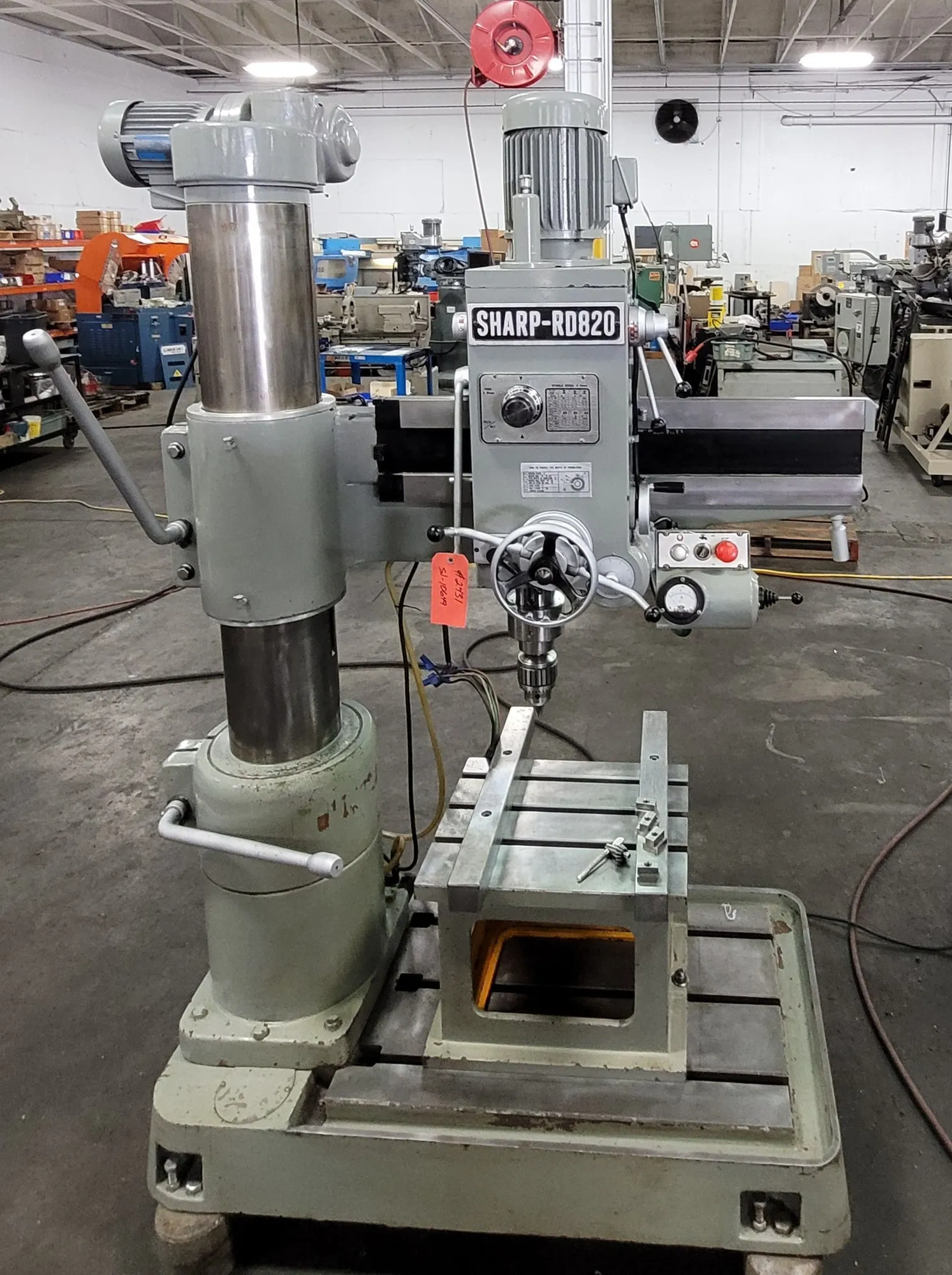

Sharp RD820 RADIAL ARM DRILL PRESS
USED
Brand: Sharp
Model: RD820
Type: RADIAL ARM DRILL PRESS
Serial Number: 10649
Year of MFG: 1989
Wired: 220V, 60HZ, 3 Phase
Jacobs Heavy Duty Drill Chuck: 18N
Capacity
Drilling : 1.968” cast iron, 1.259” steel
Boring : 4.125” cast iron, 2.75” steel
Tapping (Steel / Cast Iron): 0.98" / 1.26"
Spindle
Spindle Taper: MT #4
Spindle Travel: 8.27"
Spindle Speeds: 6 steps (73 - 1247 RPM or 88 - 1500 RPM depending on the configuration)
Spindle Feeds: 3 to 6 steps (0.002" - 0.006" per revolution)
Motor: 3 HP

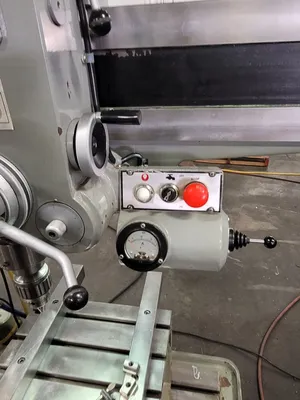

Motor Clamp: Manual
Coolant Pump: 1/8HP
Reach & Clearance
Column to Spindle Center (Max / Min): 33.46" / 9.06"
Base to Spindle End (Max / Min): 47.64" / 14.76"
Spindle Head Travel: 25.2"
Elevating Height of Arm: 24.61"
Dimensions & Weight

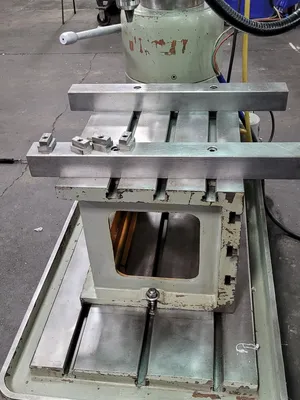

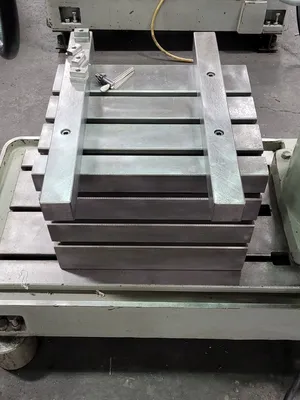

Table Dimensions: 23.62" x 17.52" x 14.96" (Box Table)
T-slots and drain channels on box table
Base Dimensions: 49.21" x 25.20" x 6.30"
Machine Height (Max): 91.34"
Shipping Dimensions:
66'' × 32'' × 87'' (inches) – 3100lbs
Specifications Subject to Verification
New pictures coming soon.
