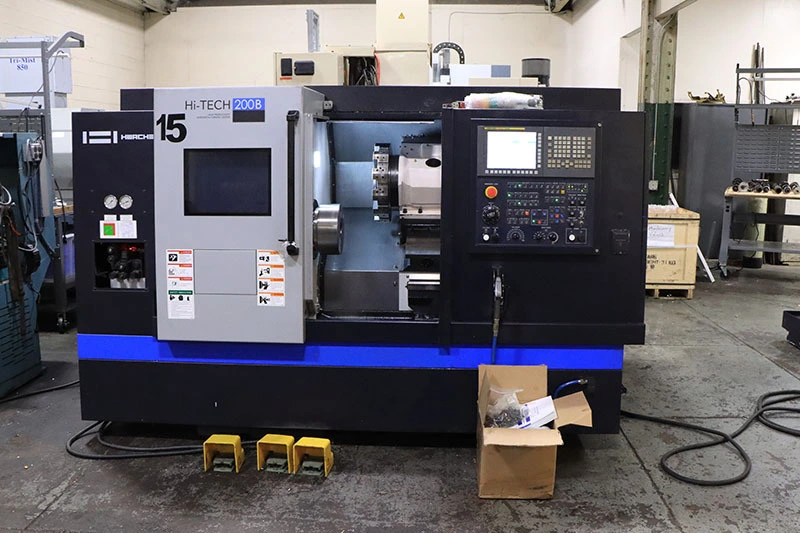

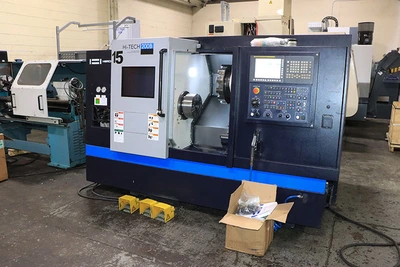

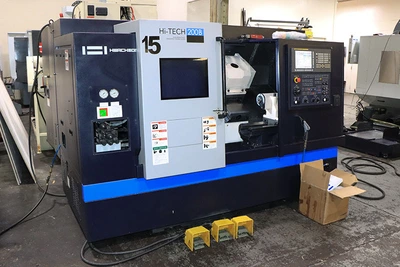

USED 2019 HWACHEON HI-TECH 200B
Overview
CNC lathe, used, comes with Fanuc 0i-TD CNC Control and 10" 3-Jaw Hydraulic Chuck. Features 12-position turret, tailstock, and toolholders. 3,500 RPM spindle speed and 13.8" turning diameter.
Specs
Swing Over Bed: 19.68"
Max. Turning Diameter: 13.8"
Machining Length: 15.75"
X-Axis Travel: 7.67:
Z-Axis Travel: 16.93"
Chuck Size: 10"
Spindle Nose: A2-6
Bar Capacity: 2.5"
Spindle Motor: 20/15 hp
Max. Spindle Speed: 3,500 RPM
Number of Turret Tool Stations: 12
Tool Size: 1" x 1.57"

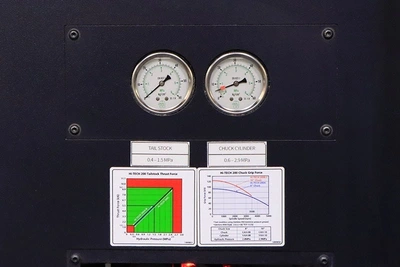

Tailstock Quill Diameter: 3.15"
Tailstock Quill Stroke: 3.94"
Tailstock Quill Taper: MT#4

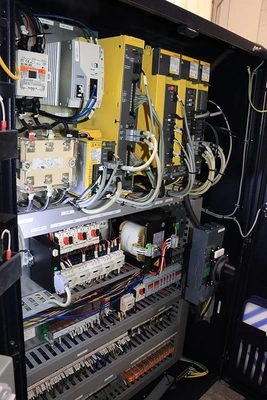

Power Supply: 30kVA

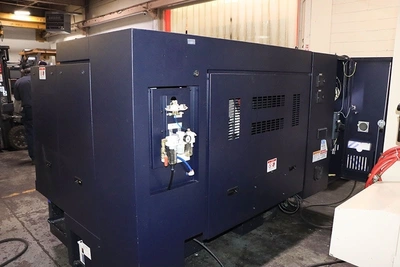

Dimensions 104" x 66" x 68" High
Approx. Weight 9,300 Lbs
Equipped With

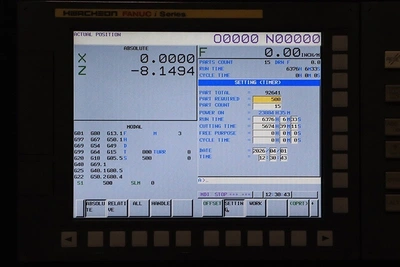

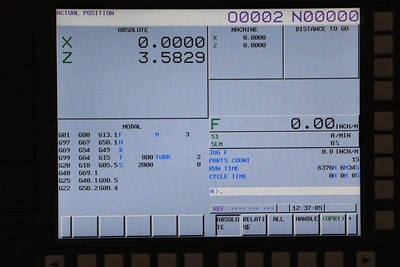

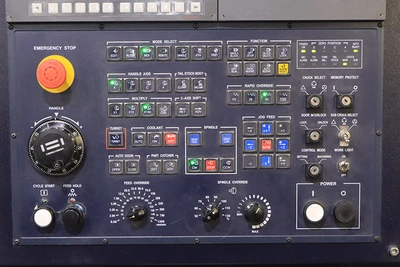

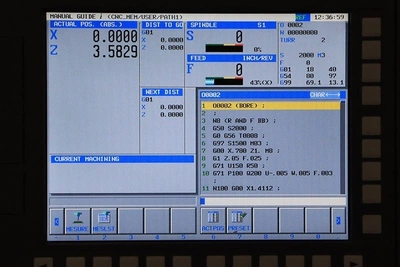

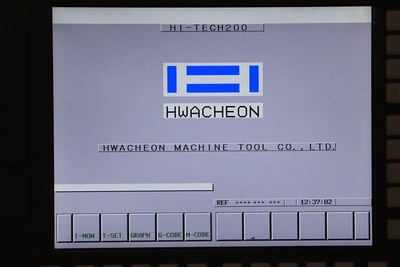

- Fanuc 0i-TD CNC Control

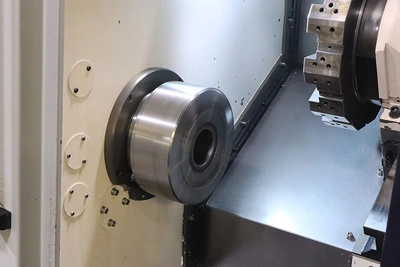

- 10" 3-Jaw Hydraulic Chuck

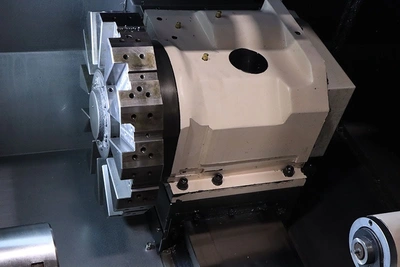

- 12 Position Turret

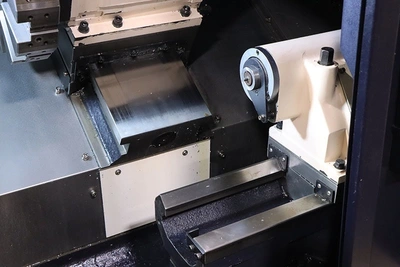

- Tailstock

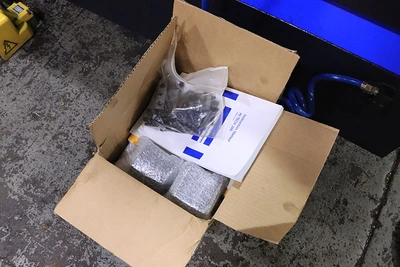

- All Available Toolholders and Manuals
