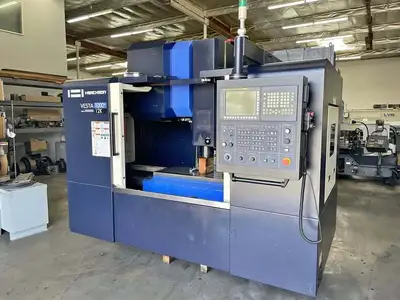

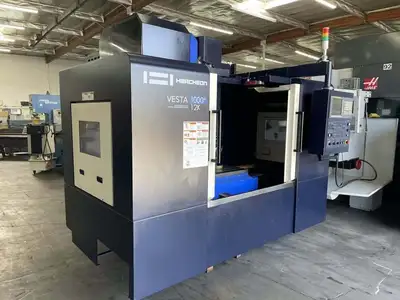

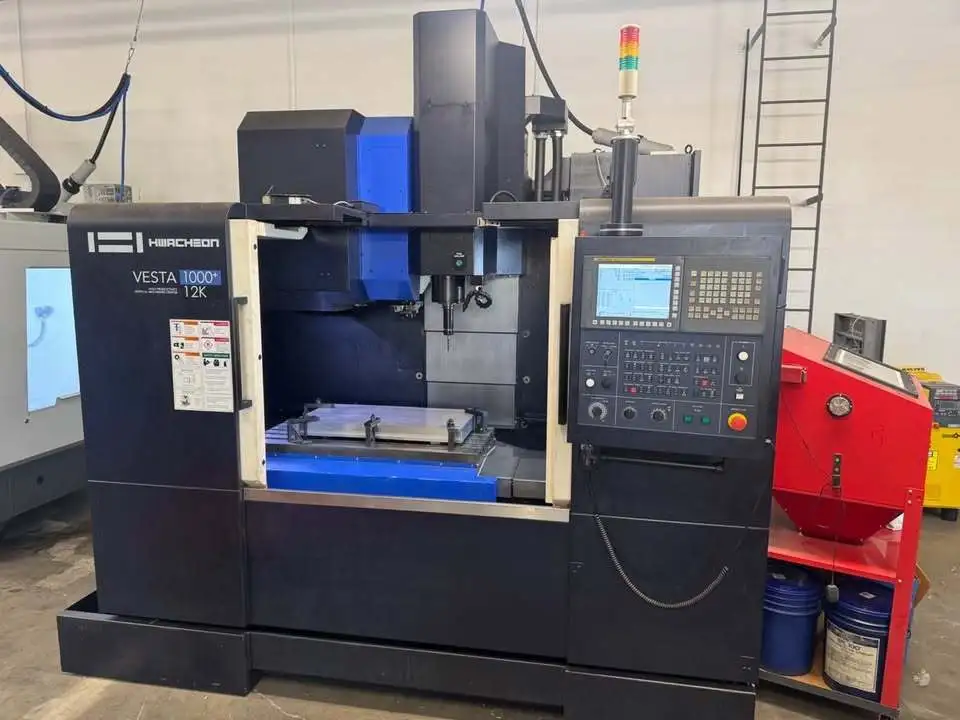

USED 2018 HWACHEON VESTA-1000

Ohio, United States
1,549Listings|425Followers
Overview
Vertical Machining Centers

Vertical Machining Center, used condition. Features: 3-axis, 1000 x 550 x 500 mm travel, 12,000 RPM, 15 kW, 24 ATC, BT-40 taper. Equipped with Hwacheon Fanuc i Series control, chip conveyor, coolant thru spindle, high-pressure coolant.

Specs
X
1,000 mm
39.37"
Y
550 mm
21.654"
Z
500 mm
19.685"
Power
15 kW
20.1 hp
RPM
12,000 RPM
12,000 RPM
# ATC
24
24
Taper
BT-40
BT-40
Table-W
500 mm
19.685"
Table-L
1,100 mm
43.307"
# Axis
3
3
Control
CNC (Fanuc)
CNC (Fanuc)
Dimensions
131.3" x 87" x 105.12"
131.3" x 87" x 105.12"
Weight
14,500 Lbs
14,500 Lbs
Equipped With

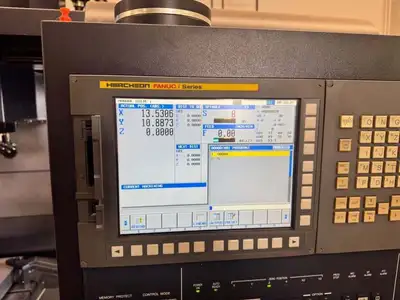

Control Hwacheon Fanuc i Series

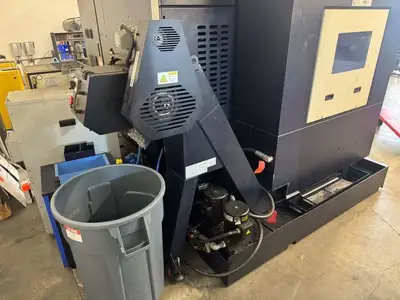

Chip Conveyor
Coolant Thru Spindle
High Pressure Coolant
