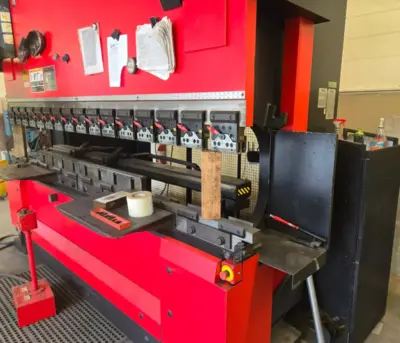

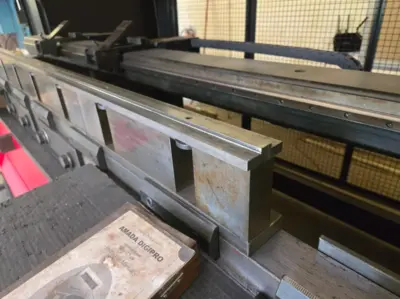

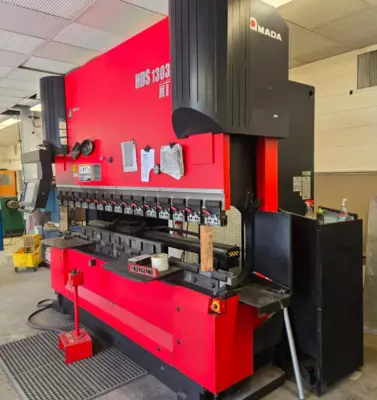

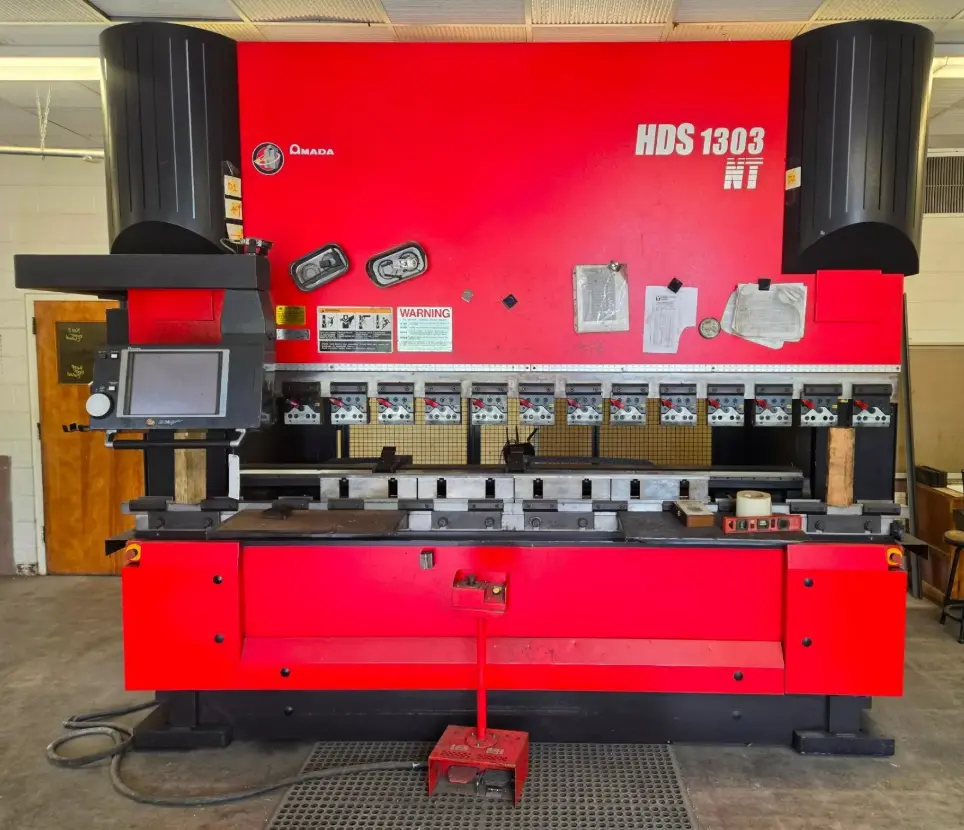

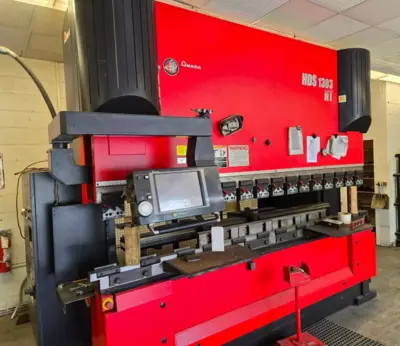

USED 2011 AMADA HDS-1303NT

Maximum bending length: 126.77″
Tonnage capacity: 143 US tons
Stroke length: 7.87″
Approach speed of upper beam: 7.87 IPS
Bending speed of upper beam: 0.79 IPS
Return speed of upper beam: 7.87 IPS
Number of main cylinders: 2
Hydraulic pump motor output: 5.2 x 2.7 HP
Hydraulic unit tank capacity: 17.8 Gal.
Machine weight; 13.2 US tons

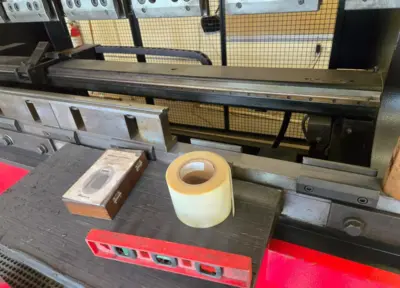

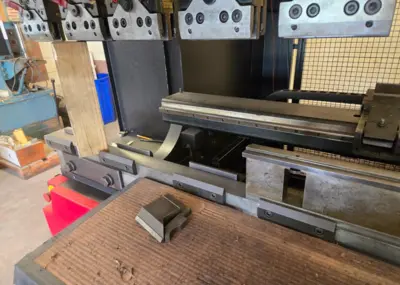

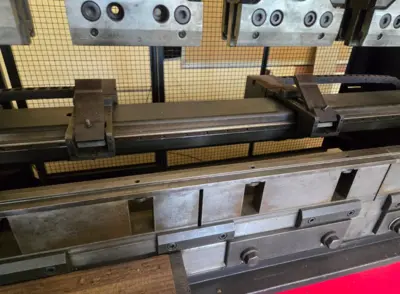

Backgauge
Repeatability: L Axis 0.0008"

Movement Range:
L Axis 27.55"
Y Axis 86.6"
Z Axis 9.8"

Feed Speed:
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute

Minimum Command Unit
Ram 0.0001"
Backgauge 0.001"

CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
D1 & D2 – Ram depth : ( 0.098″ ram tilt)
L1 & L2 – Backgauge: (14 Backgauge Taper)
Z Vertical finger position: Y1 & Y2
– Horiz. finger movement, side to side CC – Ram crowning

Input Method: Touch Screen

Display
15″ Color Liquid Crystal Touch Screen
Program Storage
Limited only by network storage capacity
Bends per Program: 99
Die Library: 300
Punch Library: 300

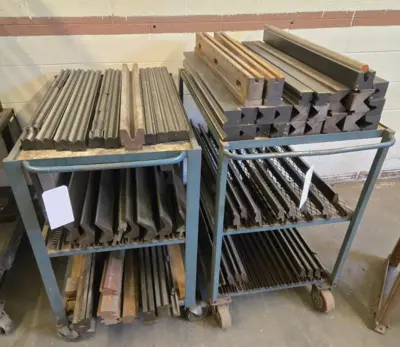

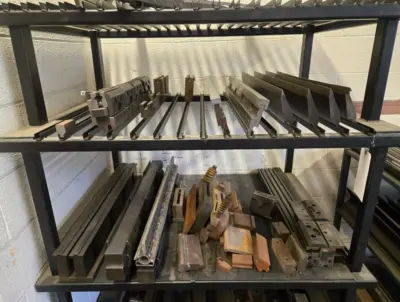

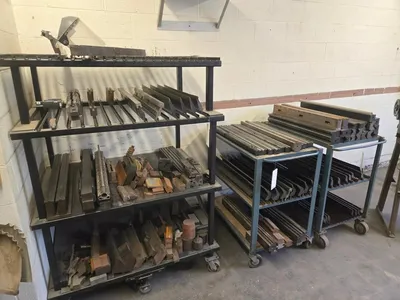

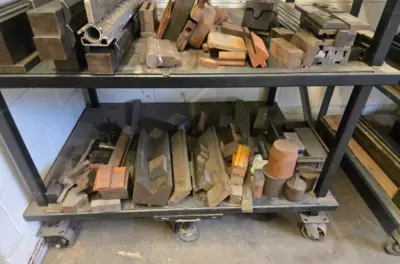

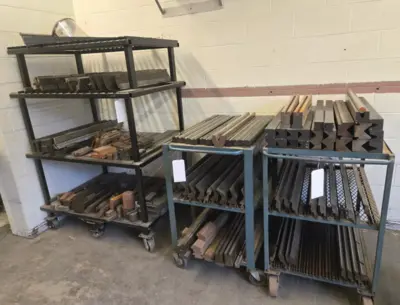

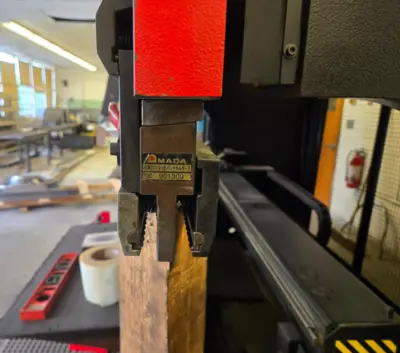

European Style Press Brake Tooling & American to European Adaptors
