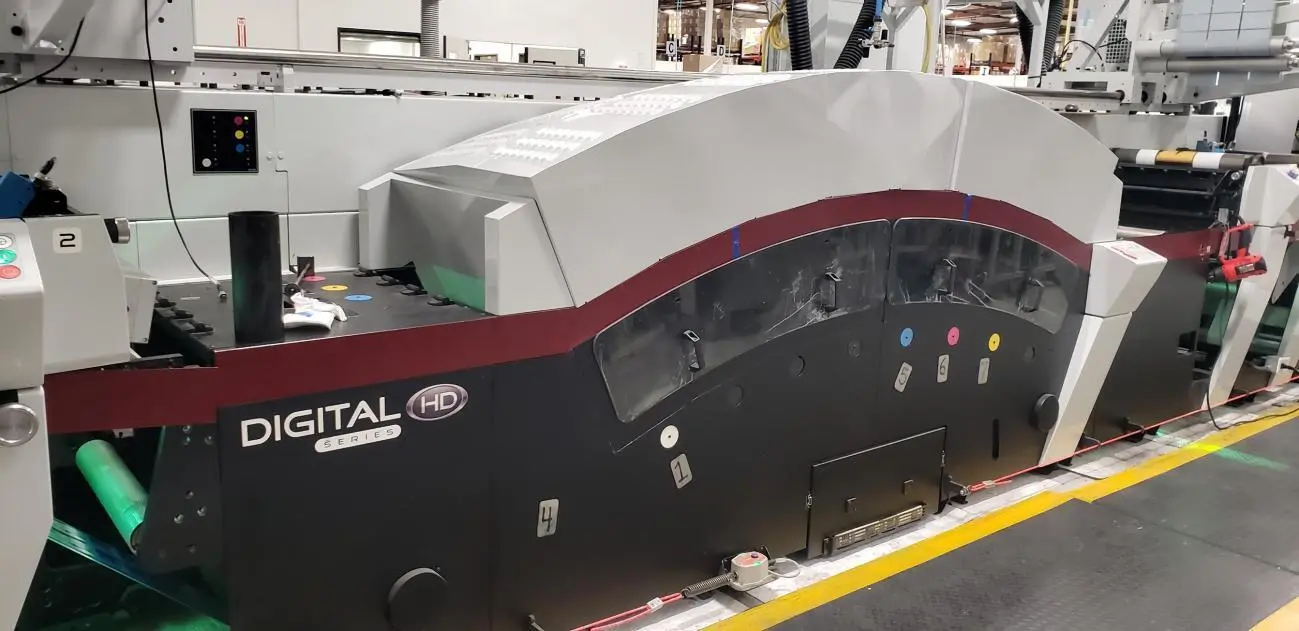

USED 2019 MARK ANDY DIGITAL SERIES HD

7-color UV inkjet capability (C, Y, M, K, O, V, G)

Print width: 16.8” (426 mm)

2×600 dpi native heads (1200 dpi output)

LED pinning, ink delivery system, splice protection

Driven chill roll

Base config: CMYK (expandable)

Digital white print head

ProWorx Digital Front End (Esko) with Dell server & X-Rite i1IO

Upgrade for 6+ color printing

ProView operator interface (web inspection/viewing)

Unwind System

Cantilevered unwind (40” / 1000 mm capacity)

Vertical dancer with closed-loop control

Servo-driven infeed pacing (closed-loop feedback)

Ultrasonic web guide (2 sensors)

Ultrasonic web break detection

Unwind accessory module

Vetaphone single-sided corona treater + mounting

Teknek double-sided web cleaner + mounting

Print Stations

4× flexo print station modules with load & lock inking + bearer capture

4× anilox rolls (Cheshire or Interflex)

4× standard ink pans

Roll & Doctoring Systems

Smart Blade Doctor Blade Holder System

Meter roll with bearings

Anilox drive Oldham coupling + bearings

Chilled Impression

Chilled impression roll with chiller

Rail Systems

Rail section over print station

Rail section over digital module

Cold foil unwind & waste rewind (rail-mounted, movable nip + idlers)

UV Curing

NUVA 2 cassette (iron-doped bulb) in digital module

GEW UV base system with Rhino power supplies (on chill rolls)

3× E2C arc cassettes with housing & shielding (RhinoRack if multiple)

Extended flow web path (final UV, single lamp)

Chill roll for extended web path

Press Control & Automation

Press control center

Servo control (750 fpm / 230 m/min max, remote diagnostics)

Auto register (per print station + diecut modules + sheeter if applicable)

Pre-register per station

VariPrint capability

Insetting / Constant Error Correction (CEC)

Pneumatic laminating nip (idling roll)

Rotary Die (RD) Scoring

RD scorer

Mounting kit + idlers
