NEW GOODWAY GLS-1500M
Overview
Description

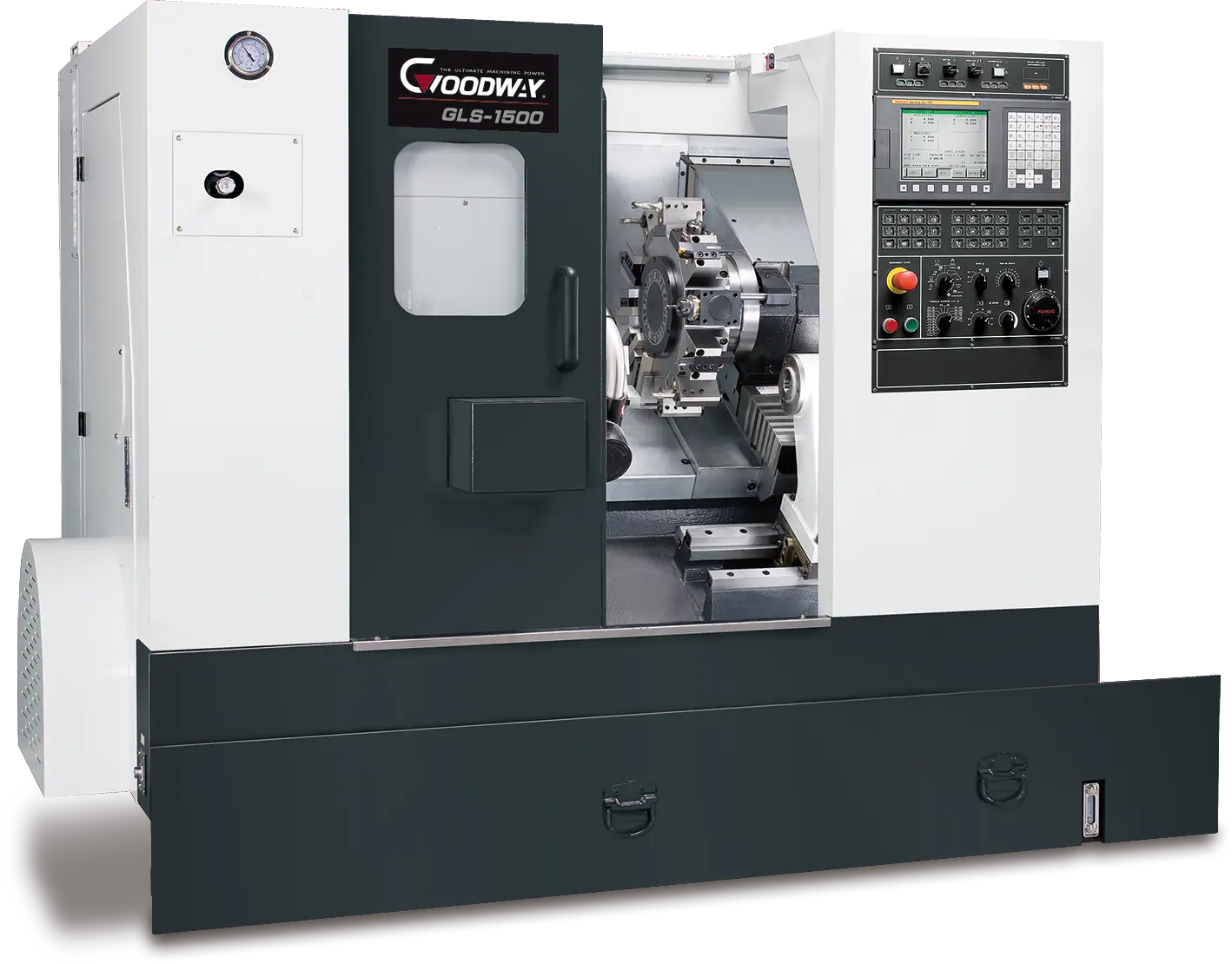

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high-speed CNC turning center. Using 2 types of bed combined with super rigidity, high-speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 is a single turret with live tool Y-axis, max swing diameter of 560mm, and spindle speed up to 6,000 RPM. Features include FANUC enhancements, advanced auto lubrication, and a 7-bar coolant pump.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
• The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste
Specifications
| Max Swing Diameter | 560 mm | 22.047" |
|---|---|---|
| Swing Over Saddle | 230 mm | 9.0551" |
| Max Turning Diameter | 390 mm | 15.354" |
| Max Turning Length | 210 mm | 8.2677" |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 51 mm | 2.0079" |
| Hole Through Spindle | 61 mm | 2.4016" |
| Spindle Bearing Dia (Front/ Rear) | 90 mm | 3.5433" |
| Hydraulic Cylinder | 8" | 203.2 mm |
| Spindle Nose | A2-5 | A2-5 |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Live Tooling Stations | 12 | 12 |
| OD Tool Shank Size (Live Tooling) | 20 mm | 0.7874" |
| ID Tool Shank Size (Live Tooling) | 25 mm | 0.9843" |
| Live Tooling RPM Range | 4000 RPM | 4000 RPM |
| CN Control | Fanuc 0i-TF Plus | Fanuc 0i-TF Plus |
| Control | CNC | CNC |
Equipped With
FANUC 0I-TF PLUS WITH 10.4 LCD SCREEN
FANUC MANUAL GUIDE-I
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
FANUC ALPHA P22 SPINDLE MOTOR 11/15 KW
LINEAR GUIDWAYS ON ALL AXES
RIGID TAPPING
6" HYDRUALIC CYLINDER
6" TAIWAN MADE 3 JAWS BIG BORE CHUCK WITH ONE SET EACH SOFT & HARD JAWS
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
HYDRAULIC TAIL STOCK S (QUILL PROGRAMMABLE, QUILL TRAVEL LENGTH 80MM) LIVE CENTER MT4)
12 STATION LIVE TOOLING TURRET (12 LIVE OF 12 STATION)
2 PCS X 0° LIVE TOOL HOLDER ER-25/EC QUICK FLEX
2 PCS X 90° LIVE TOOL HOLDER ER-25/EC QUICK FLEX
TOOL HOLDER PACKAGE:
- 6 PCS X CLAMP PIECE (CT-3046)
- 6 PCS X CLAMP PIECE (CT-3045)
- 1 PC X FACE CUTTING TOOL HOLDER (CY-3007)
- 6 PCS X BORING BAR HOLDER (CY-3006)
- 1 PC X CUT-OFF TOOL HOLDER
- 1 PC X BORING BAR SLEEVE (CY-3032A/CY-3032A/CY-3032B/CY-3032C/CF-3052D/CF-3052E) DIA. 10/12/16/8/6
- 1 PC X THROW-AWAY DRILL SOCKET(CY-3033A/CY-3033B) DIA. 20/25
- 1 PC X BORING BAR SLEEVE (CF-3053/CF-3054) MT1/MT2
AUTO RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPMA
SPINDLE ORIENTATION
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
UPGRADED CHIP CONVEYOR HEIGHT TO 1200MM
CHIP CART
7 BAR COOLANT PUMP
OIL SKIMMER
COOLANT PRESSURE SWITCH
COOLANT LEVEL SWITCH
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER (YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
