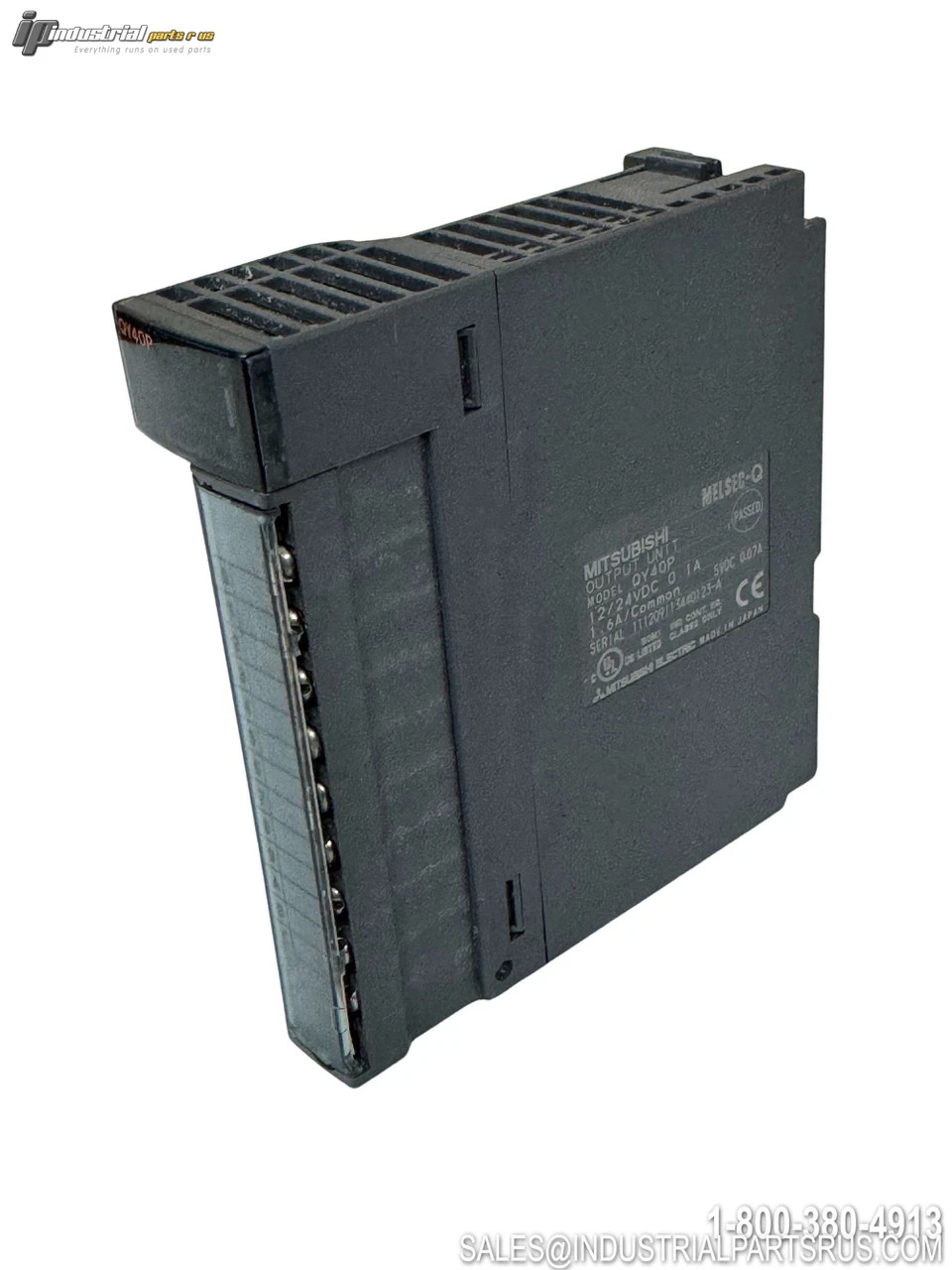

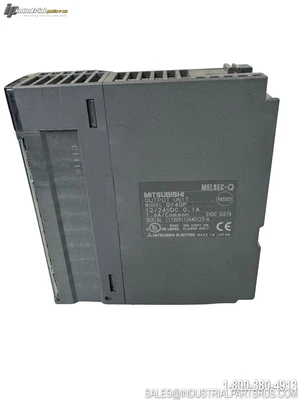

USED MITSUBISHI QY40P

The Mitsubishi QY40P is a 16-point digital transistor output module designed for use in MELSEC-Q series programmable logic controller systems. This sink-type output module features photocoupler isolation and is rated for 12-24VDC operation with a maximum load current of 0.1A per point.
Specification
Value
Brand
Mitsubishi Electric
Model/Part Number
QY40P
Product Type
Transistor Output Module (Sink Type)
Series
MELSEC-Q
Number of Output Points
16 points
Output Type
Transistor (Sink)
Isolation Method
Photocoupler
Rated Load Voltage
12-24VDC (+20/-15%)
Maximum Load Current
0.1A per point, 1.6A common
Maximum Inrush Current
0.7A, 10ms or less
Leakage Current at OFF
0.1mA or less
Max Voltage Drop at ON
0.1VDC (TYP), 0.2VDC (MAX)
Response Time
1ms
Surge Suppressor
Zener diode
Dielectric Withstand Voltage
560VAC rms/3 cycles
Insulation Resistance
10MΩ or more
Protection Degree
IP2X
Terminal Type
18-point screw terminal (M3 screws)
Common Terminal
16 points/common, sink type
We warranty all items for 30 days from date of purchase.
