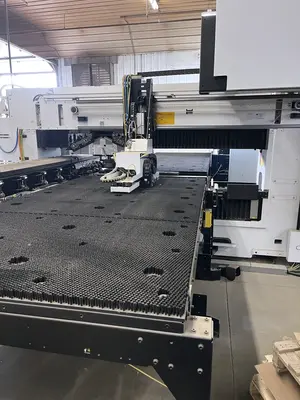

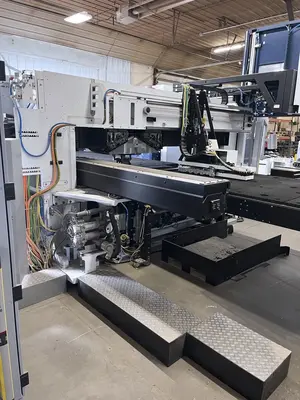

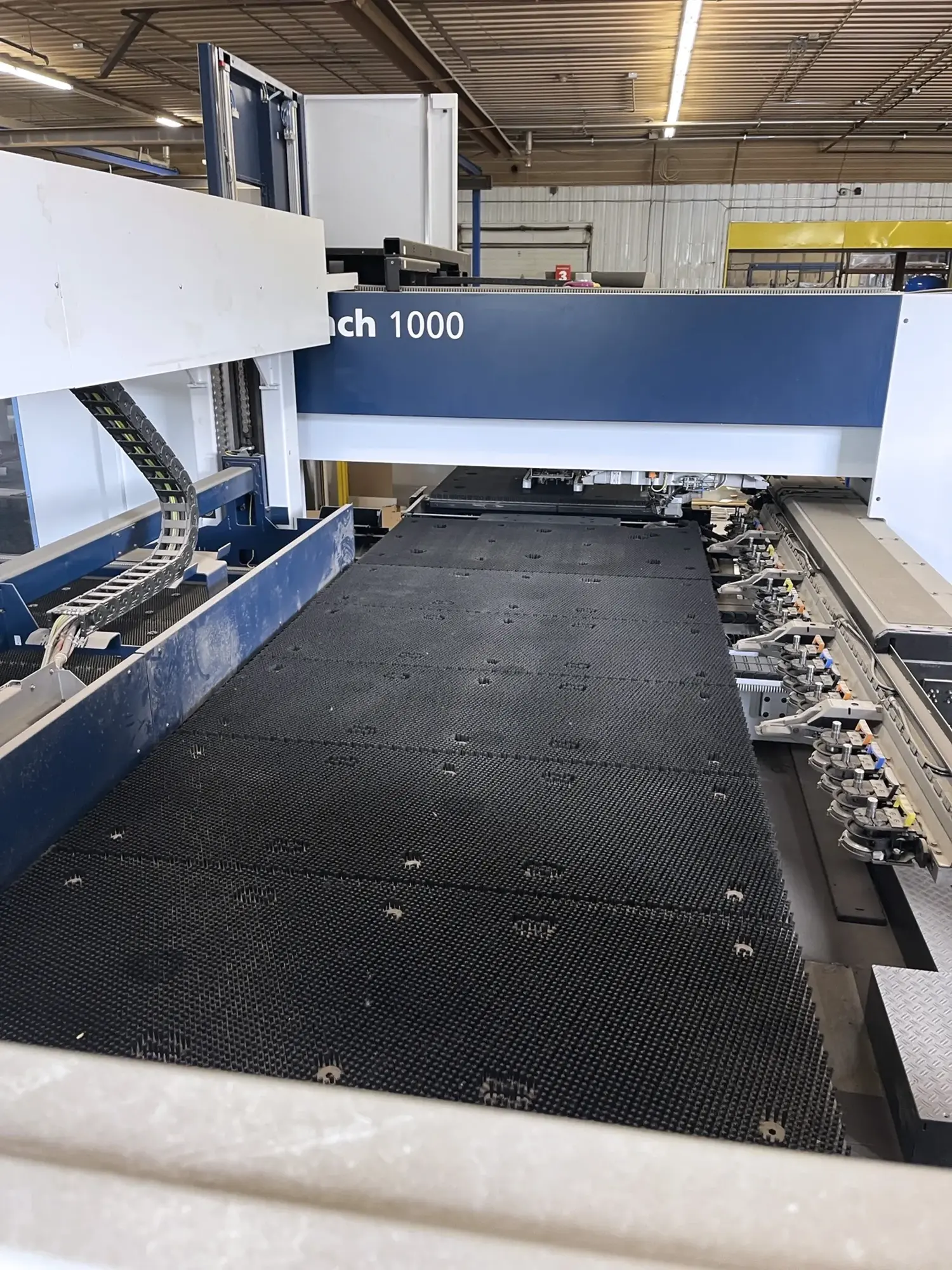

USED 2024 TRUMPF TRUPUNCH 1000 (S19)
Overview
Large Format (120" x 61")| SortMaster| $100K worht tooling included
The Trumpf TruPunch 1000 S19 (2024) with TouchPoint control is a compact CNC turret punching machine designed for midsize batch production. Ideal for automotive, aerospace, and custom metal fabrication, it delivers precise punching, nibbling, and intricate cut-outs with high efficiency and minimal setup time.
Specs
Sheet Capacity: 5' x 10'
Maximum Sheet Thickness: 0.250"
Effective Punch Force: 18 tons
Maximum Axis Speed: 100 m/min
Punching Stroke Rate: 600 hits/minute
Positioning Accuracy: ±0.004"
TOOL CAPACITY: 20 Tool Station
No. of Claws: 4 Sheet clamping
X Axis: 120.1"
Y Axis: 61.02"
Space Requirements: 247.6" x 257.0"
Average Power Input in Production: 3.5kW
Equipped With
Large Format: 120.1" x 61.02" Work rage
With Manual Loading 5' x 12'
SheetMaster Automation
SortMaster Automation

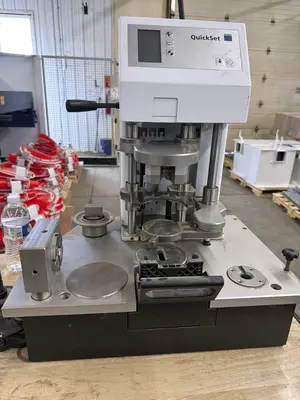

QuickSet Tool Presetter
Trumpf MultiTool Capability
Thread Forming / Tapping Tooling
Brush Table
Smart Functions Package

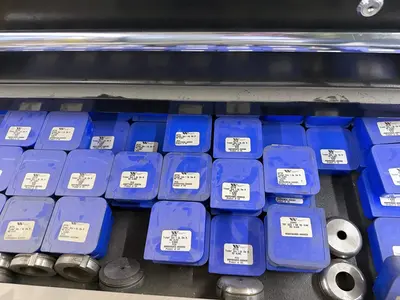

Tooling worth $100K included (EKO Tooling
Louver Tooling)
