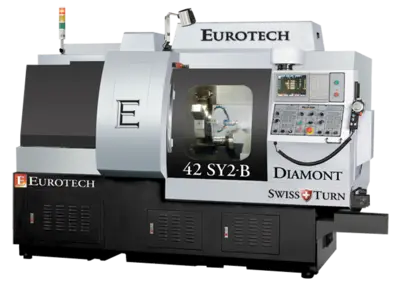

NEW EUROTECH SY2-B
Overview
Up to 11-axis, 42mm swiss-type CNC auto lathe with 12-live station turret, gang static and driven tooling, 2 C-axes, 2 B-axes, 2 Y-axes, and sub-spindle.
[pdf-embedder url=”https://newusedmachines.com/ca/wp-content/uploads/2019/11/swissturn_diamont_brch-6-1-11.pdf”]
Specs
Model: 42 SY2-B
Max Turning Diameter: 1.80”
Max. Machining Length per chucking: 11.02”
Max Drilling Diameter: 1.18″
Max Tapping Diameter: M16
Number of Tools: 5
Dimension: 0.79″ x 0.79″ x 0.79″
Cross Working: Driven Tooling (Slide 1)
Number of Tools: 4
Dimension: 0.63″ (ER25)
Speed: 6,000 RPM
Patented 12 Position: Mill-Turn Servo Turret
Number of Stations (driven): 12
Max. number of live tools: 24
Number of potential cutting tools (using Y-axis): 48
Dimension: ER25, 0.98″ ID, 0.79″ OD
360 Degrees Working Driven: Tooling (4 of 12 turret stations hold 2 tools ea)
Number of Potential Tools: 8
Dimension: 0.63″ (ER25)
Speed: 6,000 RPM
Spindle Hole Diameter: 1.8″
Speed: 6,000 RPM
Angular movement: Full C axis
Horsepower: 10.0 HP
Spindle Hole Diameter: 1.8″
Speed: 6,000 RPM
Angular movement: Full C axis
Horsepower: 10.0 HP
Max Length for front eject: 9.8″
X1, Y1, Z1, X2, Z2: 1,181 IPM
Machine Dimensions: (incl. Chip Conveyor)
Length x Width x Height: 118 in x 71 in x 78 in
Weight: 14,730 lbs
OPTION – 11 Axis: 42 2Y-B XI
Backworking Tools #: 4
Driven or stationary: ER25
