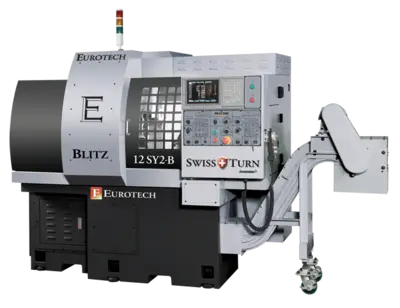

NEW EUROTECH SY2-B
Overview
Up to 11-axis, up to 16mm swiss-type CNC auto lathe w/live turret, gang static and driven tooling, 2 C-axes, 2 B-axes, 2 Y-axes, and sub-spindle.
[pdf-embedder url=”https://newusedmachines.com/ca/wp-content/uploads/2019/11/swissturn_blitz-brch-6-9-11.pdf”]
Specs
Model: 12 SY2-B
Max Turning Diameter: .5”
Max. Machining Length per chucking: 5.91”
Max Drilling Diameter: 0.28″
Max Tapping Diameter: M6
Number of Tools: 4
Dimension: 0.39″ x 0.39″ x 3.9″
Number of Tools: 10 (5 and 5)
Dimension: 0.39″ x 0.39″ x 3.9″
Number of Tools: 2
Dimension: 0.28″ (ER11)
Number of Tools: 5
Dimension: ER11
Speed: 6,000 RPM
Number of Tools: 3
Dimension: ER16 and ER11
Speed: 6,000 RPM
Spindle Hole Diameter: 0.51″
Spindle Speed: 12,000 RPM
Angular movement: Full C axis
Horsepower: 2 HP
Spindle Hole Diameter: 0.51″
Spindle Speed: 12,000 RPM
Max Length for front eject: 5.9″
Horsepower: 2 HP
X1, Y1, Z1, Z2: 1,181 IPM
