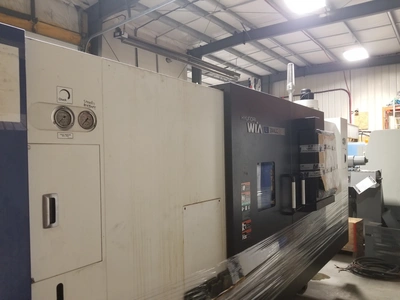

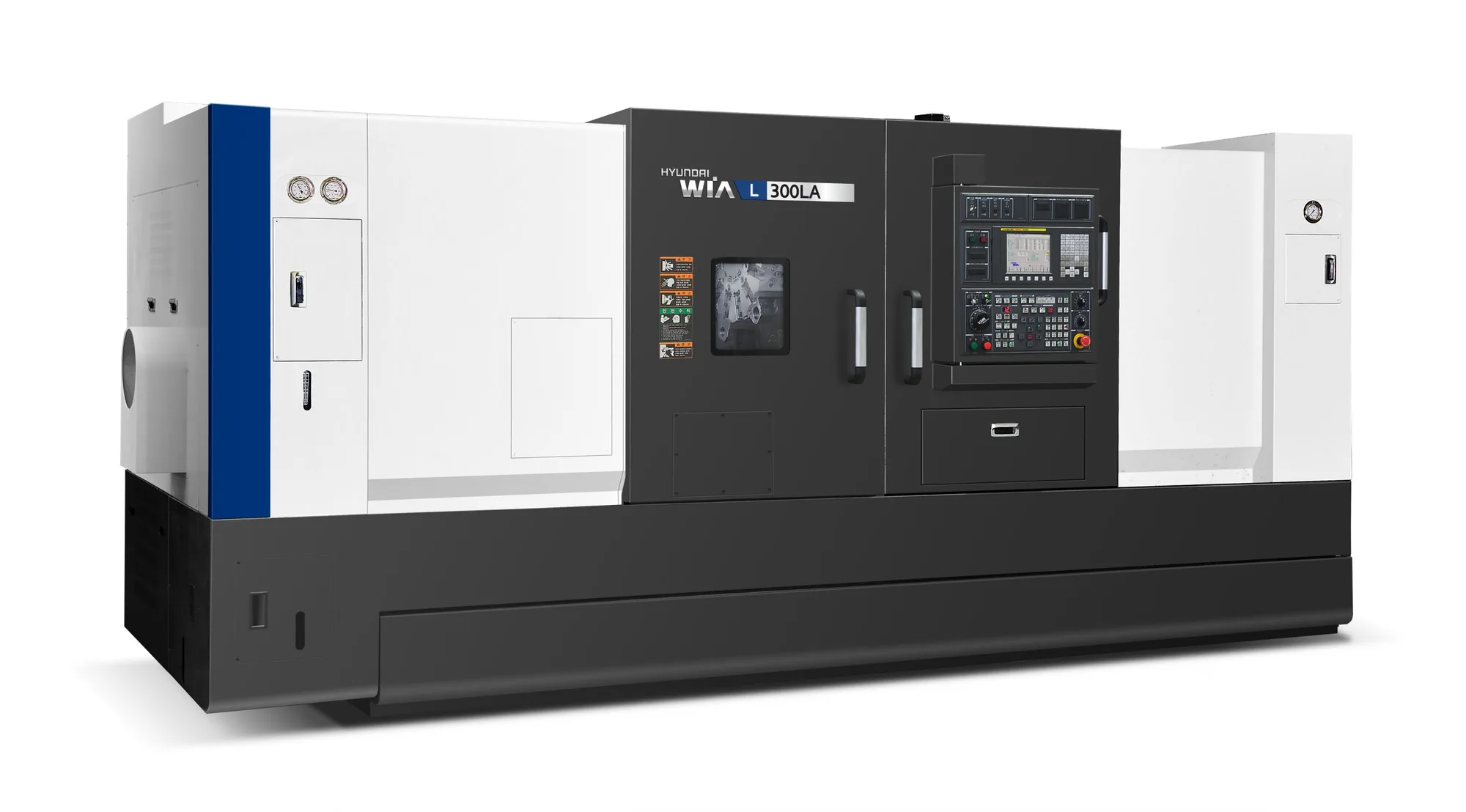

USED HYUNDAI WIA CENTER

Built 2015 installed 2016 Hyundai WIA L300LC Manual Guide I: Built 2015 installed 2016 Hyundai WIA L300LC Manual Guide I

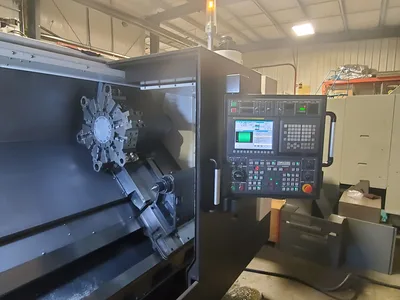

Controller: Fanuc 0i-TD 10.4″
Swing: 29.5″
Maximum Cutting Diameter: 22″
Maximum Workpiece Length: 52″
Travel X Axis: 14″
Travel Z Axis: 53.1″
Ways: Boxed
Spindle: A2 – 8
Max Bar Work Diameter: 3.54″
Spindle Bore: 4.02″
Max RPM: 3,000 rpm
Rapid Traverse X Axis: 787 ipm
Rapid Traverse Z Axis: 945 ipm

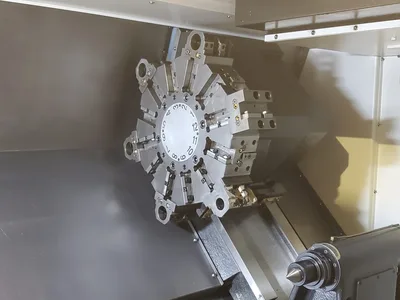

Turret: 12 Tools
Tool Size (Square Shank): 1″ sq
Tool Size (Round Shank): 2″
Index Time – Tool to Next Tool: .3 sec

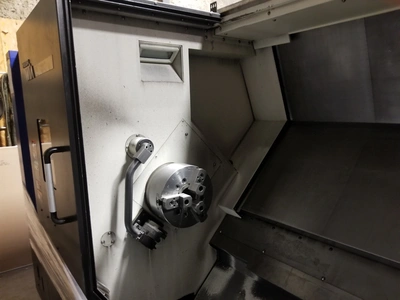

Chuck ( Samwoo Kitagawa ): 12″
Horsepower: 35 HP
Geared Head: 2 Step Geared
Torque: 810 Ft-lbs
Work Light: Yes
Weight: 16,755 lbs
Bed: 45 deg
Coolant System: 43 psi
Tool Setter: Yes
Tailstock Quill Diameter: 3.9″
Tailstock Quill Travel (Programmable): 4.7″
Tailstock Body Travel using Turret manual clap: 53.1″
Tailstock Quill Internal Taper: MT #5
Chip Conveyor: C/C(Right-Side Hinged)
Chuck Size: 12 inch
Condition: Used
