NEW NAKAMURA TOME NTX(W)
Overview

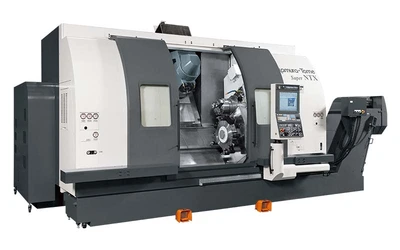

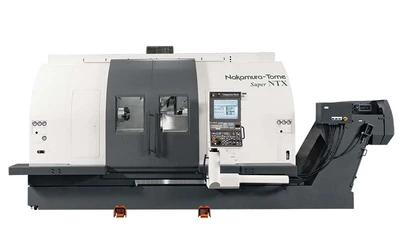

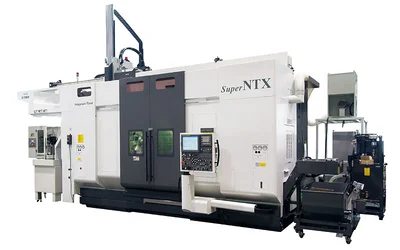

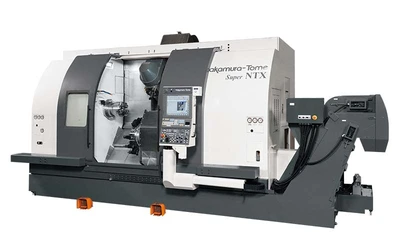

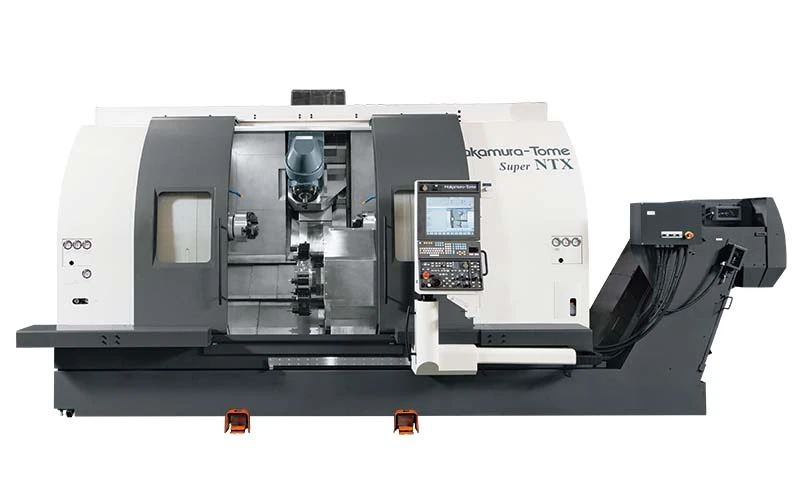

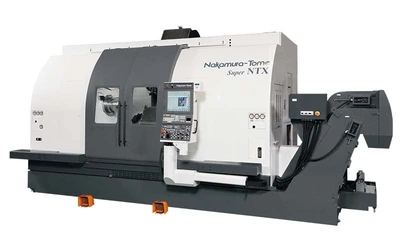

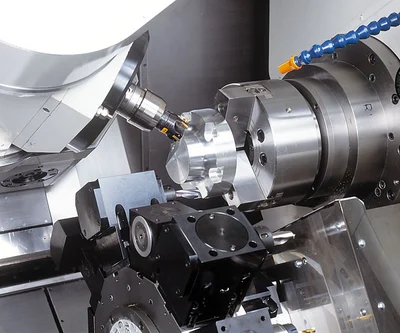

The Super NTX with its tool spindle on the upper side, and two turrets on the lower side, is a machine featuring the ultimate in multi-tasking technology. By featuring two opposite chucks on the left and right hand sides, coupled with high precision part transfer from the left to right hand chuck, all-face simultaneous complete machining in one single chucking becomes a reality.

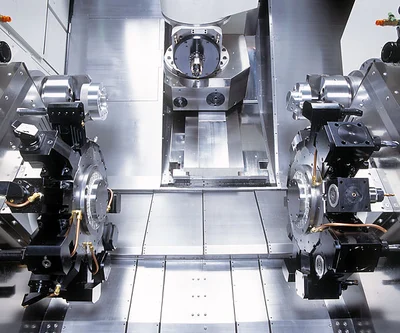

In addition to the high-rigidity turrets featuring the latest servo technology and having a tool-to-tool time of 1.5 seconds, the ATC unit is exhibiting a superior tool changing speed. By using the two lower turrets during the ATC tool change, idle time is reduced even further. The Super NTX provides the latest in high-speed and multi-tasking for production.
FEATURES & BENEFITS
Tool Magazines on the Left and Right Hand Sides
Distance Between Centers Max. 38.5 in
8.0 in Y-axis Stroke (Tool Spindle)
12,000min-1 Milling Speed (Tool Spindle)
10 / 5 HP Built-in Tool Spindle Motor
9.5 / 3 HP Lower Turrets Driven-tool Motor
230 degree B-axis Positioning Range (±115 degree)
OPTIONS
40/80/120 ATC
6.2 in Y-axis Stroke (Tool spindle)
12,000 min-1 Milling Speed (Tool spindle)
25 HP Built-in tool Spindle Motor
30/20 HP Built-in Spindle Motor (L,R)
7.5/5 HP Lower Turrets Driven-tool Motor
230 degree B-axis Positioning Range (±115 degree)
Specs
ø 17.4 (440) in (mm): ø 17.4 (440) in (mm)
15.4 (390) (lower turret) in (mm): 15.4 (390) (lower turret) in (mm)
43.3 (1100) in (mm): 43.3 (1100) in (mm)
3.6 in ( 90) in (mm): 3.6 in ( 90) in (mm)
2.5 (65 ) in (mm): 2.5 (65 ) in (mm)
8.0″ (203mm) / 10″ (254mm): 8.0″ (203mm) / 10″ (254mm)
6.3 (160) (±3.2 (80)) in (mm): 6.3 (160) (±3.2 (80)) in (mm)
630 (16) in/min (m/min): 630 (16) in/min (m/min)
45.3 (1150) in (mm): 45.3 (1150) in (mm)
1063 (27) in/min (m/min): 1063 (27) in/min (m/min)
2500 rpm: 2500 rpm
Stepless: Stepless
A2-8: A2-8
3.5 in in (mm): 3.5 in in (mm)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.5 in: 2.5 in
1E-3 degree: 1E-3 degree
12 x 2: 12 x 2
12x 2: 12x 2
8000 12000 (op.) rpm: 8000 12000 (op.) rpm
CaptoC6: CaptoC6
24 (op. 40, 80, 120): 24 (op. 40, 80, 120)
3.6 (90) / 4.7 (120) in (mm): 3.6 (90) / 4.7 (120) in (mm)
11.8 (300) / 17.7 (8) in (mm)/ lbs (kg): 11.8 (300) / 17.7 (8) in (mm)/ lbs (kg)
1.5 sec: 1.5 sec
Curvic coupling (5 degree) Brake (0.001 degree): Curvic coupling (5 degree) Brake (0.001 degree)
30 HP: 30 HP
30: 30
7.5 HP: 7.5 HP
Individual rotation: Individual rotation
3600 rpm: 3600 rpm
12: 12
46,298 (21,000) lbs (kg): 46,298 (21,000) lbs (kg)
