NEW HYUNDAI WIA LM1800TTMS
Overview

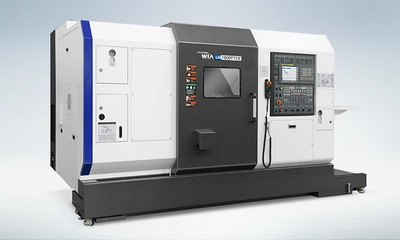

Hyundai Wia LM1800TTS
Features
Large output built-In spindle motor
High productivity guaranteed by adoption of upper and lower turrets
Highly sturdy BMT turret adopted
Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)
Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle
High degree of sturdiness achieved by adopting all axis box guide (LM2500TT Series)
Design of the hybrid-type feed shaft combining box guide and roller guide (LM1600/1800TT Series)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 9″ in
Max Turning Length: 26.5″ in
Chuck Size: Main 8″
Sub 8″ in
Driving Method: Built in
Spindle RPM: 5,000 r/min
Spindle Output: 30/15 hp
Spindle Torque: 264/158 ft.lbs
Travel(X1/X2/Z1/Z2/ZB): 6.5/7.7/27.5/28.3/26.3 in
Rapid Travel(X1/X2/Z1/Z2/ZB): 787/787/1575/1575/1575 in/min
Slide Type: LM
No. of Tools: 2 x 12 EA
Tool Size: 0.75″ /1.25″ in
Milling Tool Speed: 5,000 r/min
