NEW YASDA 10T-100TT

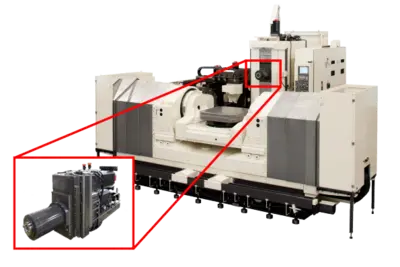

YASDA’s YBM10T-100TT machine is a newly developed simultaneous 5-axis machining center, which is equipped with a 1000 square-mm tilting table for YBM10T. It is new to the lineup of YBM10T and a high-end model machining center developed for performing stable high-precision processing with a high degree of efficiency as a theme. This processing ranges from difficult-to-cut materials to complicated profiling, in addition to aircraft parts which have recently been in high demand.
FEATURES & BENEFITS
Preload self-adjusting spindle mounted. Both heavy duty cutting at low spindle speed and highly accurate rotation with low-heat generation at high spindle speed are achieved
A two-motor torque tandem control spindle (option) mounted for YBM10T-100TT
Thermal distortion stabilized system equipped. This enables stable high-precision processing for an extended period of time by minimizing the machine-body thermal distortion caused by the factory environment
YASDA’s unique advanced function “HAS-3” equipped. This enables extremely high-precision processing at high speed by accurately reflecting NC data
High-precision five-axis processing support function “i-CAL” equipped. This enables high-precision and high-grade five-axis processing by accurately searching for the central coordinates of the important “rotation axis” and “spindle” which exert influence on processing accuracy and automatically sets them
H-frame Z-axis steel bed for heat distribution for long term accuracy
Double walled and ribbed Y-axis column with minimal axial yaw
72 tooth curvic coupling pallet clamping with air blast
Rigid machine structure for machining various material types
Optical scale feedback for precise positioning
Probing Systems
OPTIONS
High-torque Spindle
High-speed Spindle
FMS Integration
Expandable Preload Stations
FANUC Functions
