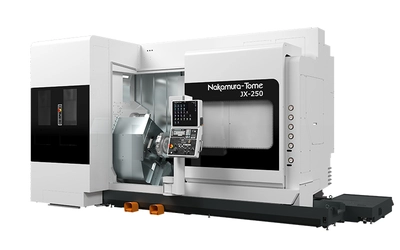

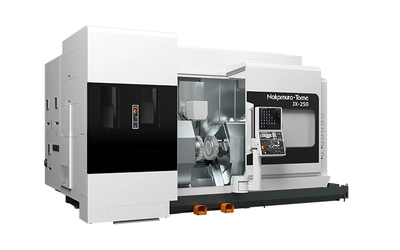

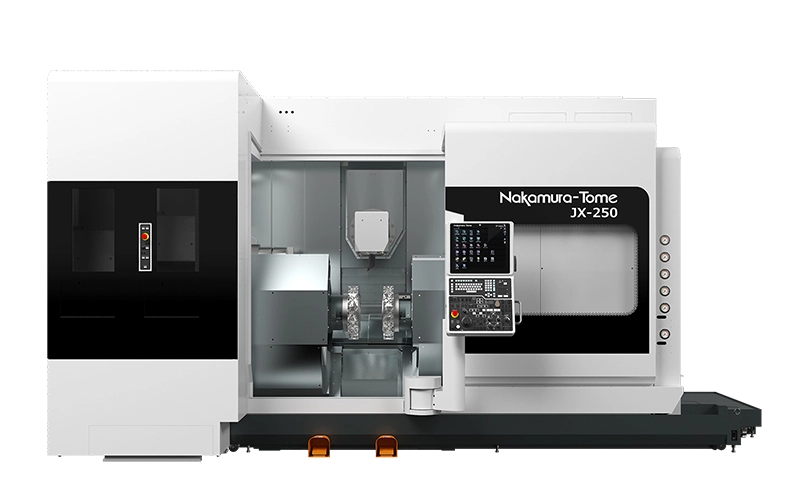

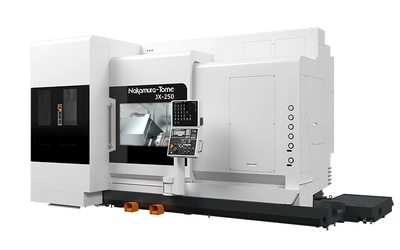

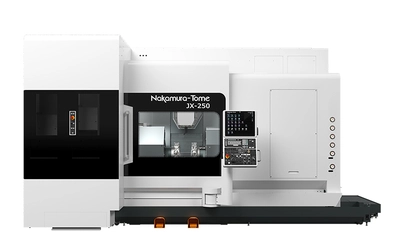

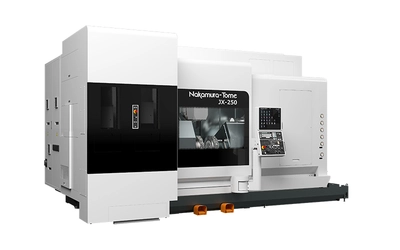

NEW NAKAMURA TOME 250
Overview
Equipped with the world’s smallest tool spindle”NT Smart Cube” and Y-axis standard twin turret. High rigidity ATC type Multitasking machine!
Equipped with AI type thermal displacement compensation system “NT Thermo Navigator AI”.
The world’s smallest tool spindle! Motor output 22/15kW
L/R twin turret with Y axis! (op. L Turret)
Supports various machining with Crossover stroke(R:490mm, L:140mm)
Distance between spindles 1,850mm!
And in the X-Y plane, it moves □ 250mm from the center of the main spindle.
Number of ATC tool stock 80 (op. 40,120)
240° B-axis positioning range (±120°)
Shortened time with opposing 2 spindles, L and R simultaneous machining.
High rigidity horizontal bed with wide, low center of gravity design, vertical column structure.
Specs
12.6″ (320mm): 12.6″ (320mm)
65.0″ (1,650mm): 65.0″ (1,650mm)
ø3.1″ (80mm) (ø 2.5″ 65mm opt): ø3.1″ (80mm) (ø 2.5″ 65mm opt)
ø2.5″ (65mm): ø2.5″ (65mm)
8.0″ (203mm) / 10″ (254mm): 8.0″ (203mm) / 10″ (254mm)
25.4″ (645mm): 25.4″ (645mm)
8.5″ (215mm) / 8.5″ (215mm): 8.5″ (215mm) / 8.5″ (215mm)
± 32.5″ (±825mm) / (at ATC+ 39.6″ (1,005mm)): ± 32.5″ (±825mm) / (at ATC+ 39.6″ (1,005mm))
58.7″ (1,490mm): 58.7″ (1,490mm)
4301″ (1,095mm) / 29.3″ (745mm): 4301″ (1,095mm) / 29.3″ (745mm)
± 4.9″ (125mm): ± 4.9″ (125mm)
± 1.6″ (40mm) / ± 1.6″ (40mm): ± 1.6″ (40mm) / ± 1.6″ (40mm)
61.0″ (1,550mm): 61.0″ (1,550mm)
3,500 rpm: 3,500 rpm
Stepless: Stepless
A2-8: A2-8
3.1″ (80mm): 3.1″ (80mm)
4,500 rpm: 4,500 rpm
Stepless: Stepless
A2-6: A2-6
2.5 ( 65mm) in (mm): 2.5 ( 65mm) in (mm)
80 (40, 120) opt: 80 (40, 120) opt
48: 48
12,000 rpm: 12,000 rpm
CaptoC6: CaptoC6
40 (80, 120)(op.): 40 (80, 120)(op.)
26 lbs (12kg): 26 lbs (12kg)
30/20 KW: 30/20 KW
55,000 lbs (25,000kg): 55,000 lbs (25,000kg)
