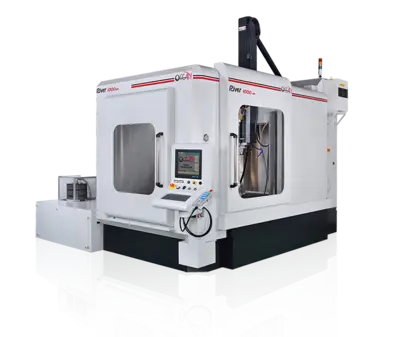

NEW OCEAN 1000
Overview
The River 1000 is designed with 5-Axis tool center point (TCP) control drilling on irregular shared workpiece or special alloy steel parts. Its flexible working range is suitable for all kinds of aero-engine blades and aero-engine diffusers.
FEATURES & BENEFITS
Programmable TCP Control
High Table Capacity (3000 kgs)
Tilt Table up to 120°
Suitable for Aerospace Engine Components and Diffusers
E-Learning Software
Specs
Table travel (X,Y axes): 1000 x 1200 mm
Work table size: 1200 x 1250 mm
Z axis travel: 1000 mm
W axis travel: 700 mm
Max. workpiece height: 1100 mm
Max. workpiece weight: 3000 kgs (with tool fixture)
Power input: According to local voltage
Max. average current: 32 Amps / (64 Amps optional)
Power capacity: 6 KVA
Electrode diameter: 0.1~3.0 mm / (3.1~6.3 mm Optional)
Machine net weight: 7000 kgs
Depth / Width / Height: 4350 x 4250 x 4000 mm
*Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.: *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
