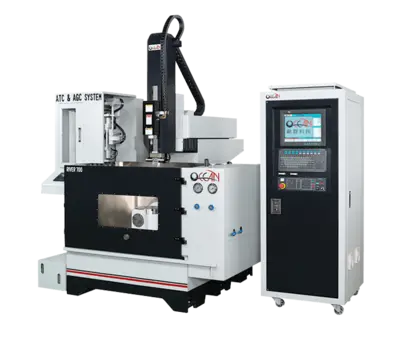

NEW OCEAN 700
Overview
Compact Hardware and High Quality Human-Machine Interface
IPC(MIC-2602) card (On-board Pentium-M 1.4G include VGA)
15″ TFT LCD Display Panel
Display Power and External Keyboard Interface.
I/O Operator’s Panel
4 Axes Closed-loop Motion Control Card
I/O Control Card.
Flex and Maintainable
Self-Diagnostic System Display.
Hardware Status Display.
Alarm History Management.
USB interface.
Chinese/English/German/Japanese Conversion
User Friendly and Compatible
Dialogue Programming
G/M Code Programming
Background Editing
Special Modular Machining (Circle,Rectangle Patterns)
Auto Edging, Center of Two Points, Center of Circle Contains Electrode
Radius Compensation
DXF file and Wire Cut Program Transfer
Variable deepness control of machining.
Simulation and working path display.
Many condition files-each file input has 100 discharge variables.
100 sets of drilling deepness
Specs
Table travel (X,Y axes travel): 700×500 mm
Z axis travel: 500mm
W axis travel: 500mm
Rotary table diameter: Φ250mm
Max. vertical workpiece height: 340 mm
Max. workpiece swiveling range: 300mm
Max. table load: 40kgs (When Tilting 30 kgs)
A axis swiveling range: -110° ~ +110°
B axis rotation range: 360°
Power consumption: 8 ~ 10 KVA
Electrode diameter: 0.1 ~ 3.0mm (Opt.: 3.1 ~ 6.3)
Tank Capacity (submerge): 600 liters
Max. electrode length (opt.): 500 mm
Power input: Local Specification
Max. average current: 32A (Opt: 64 Amps)
Machine net weight (N.W.): 3500 kg
Machine diameter (W x D x H): 2050 x 2200 x 2000 mm
