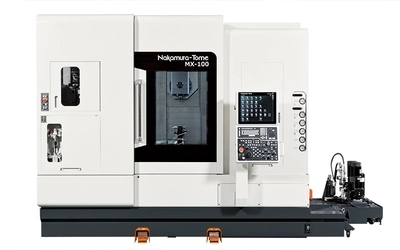

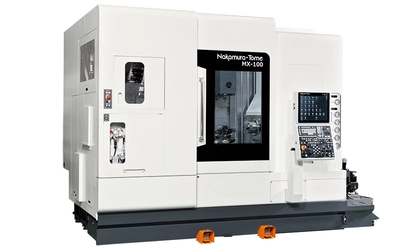

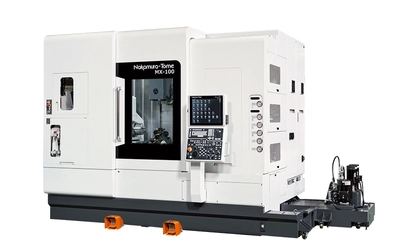

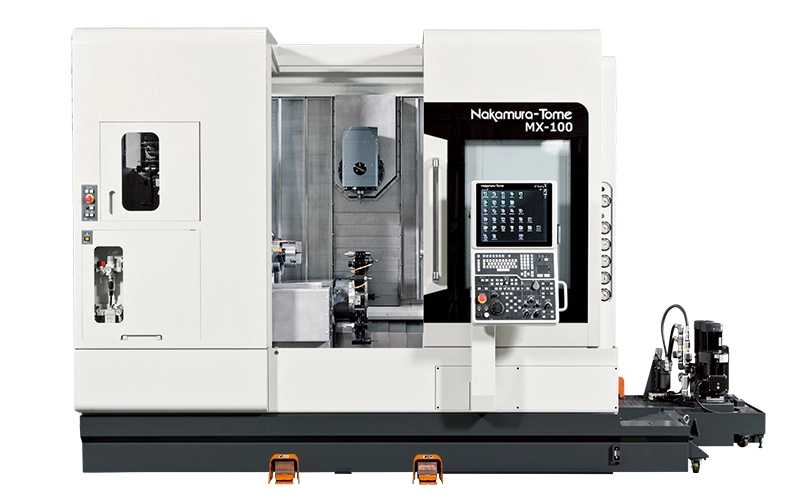

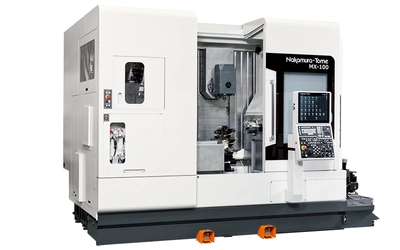

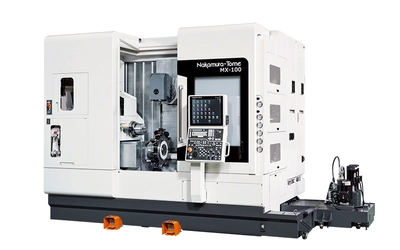

NEW NAKAMURA TOME 100
Overview

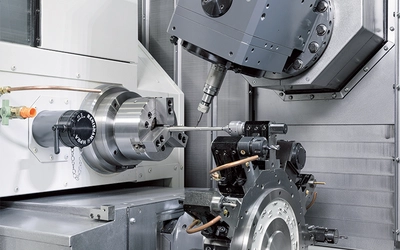

Turning and milling ability has improved!ATC type Multitasking machine with tool spindle, lower turret and opposed 2 spindle structure.
Distance between centers 1,000mm
Built-in spindle motor

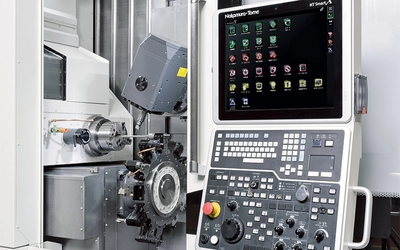

User interface evolved!Equipped with NT SmartX.

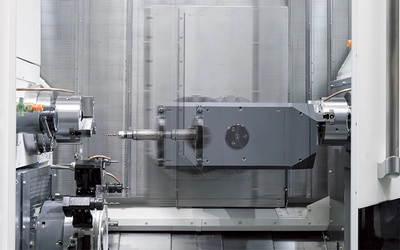

210mm Y-axis stroke (Tool spindle)
Tool spindle speed 12,000 min-1, equipped with 11/7.5 kW motor.
Low noise, low vibration servo drive ATC equipped. Number of tool stock 36 (op. 48,72)
190° B-axis positioning range (±95°)
L spindle motor 11/7.5kW(op.15/11kW), R spindle motor 11/7.5kW. Up to 22kW cutting power available for turning shaft-work with synchronized spindles.

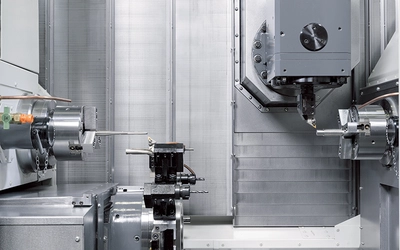

Shortened time with opposing 2 spindles, L and R simultaneous machining.
High rigidity horizontal bed with wide, low center of gravity design, vertical column structure.
Specs
12″ (305mm) / 8.7″ (220mm): 12″ (305mm) / 8.7″ (220mm)
39.4″ (1,000mm) / 9.1″ (230mm): 39.4″ (1,000mm) / 9.1″ (230mm)
34.3″ (870mm): 34.3″ (870mm)
ø 2″ (51mm) / ø 2.6″ (65mm)（op. only for L): ø 2″ (51mm) / ø 2.6″ (65mm)（op. only for L)
6″ (165mm) / 8″ (210mm): 6″ (165mm) / 8″ (210mm)
23″ (585mm): 23″ (585mm)
5.1″ (130.5mm): 5.1″ (130.5mm)
30.7″+12.6″ (780mm+320 at ATC): 30.7″+12.6″ (780mm+320 at ATC)
28.1″ (713mm): 28.1″ (713mm)
± 4.1″ (105mm): ± 4.1″ (105mm)
30.3″ (770mm): 30.3″ (770mm)
315 in/min (8 m/min): 315 in/min (8 m/min)
315 in/min (8 m/min): 315 in/min (8 m/min)
315 in/min (8 m/min): 315 in/min (8 m/min)
315 in/min (8 m/min): 315 in/min (8 m/min)
6,000 rpm: 6,000 rpm
Stepless: Stepless
A2-5: A2-5
2.5 ( 65mm) in (mm): 2.5 ( 65mm) in (mm)
1E-3 degree: 1E-3 degree
12: 12
24: 24
20,000 rpm: 20,000 rpm
Capto C4: Capto C4
36 (op. 48, 72): 36 (op. 48, 72)
2.2″ (55mm) / 3.1″ (80mm): 2.2″ (55mm) / 3.1″ (80mm)
7.1″ (180mm): 7.1″ (180mm)
1.3 sec: 1.3 sec
15 HP: 15 HP
15 HP: 15 HP
15 HP: 15 HP
37,500 lbs (17,000kg): 37,500 lbs (17,000kg)
