NEW FANUC C400IB

The RoboCut 400CiB Wire EDM machine features the powerful FANUC 31i-WB control with new iHMI User Interface, enhanced Automatic Wire Feed System and an advanced all digital power supply. The economy mode is standard and allows for energy and wire usage savings. All CiB-Series machines burn with virtually no re-cast.

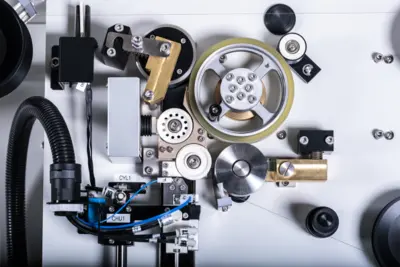

FANUC Ultra reliable AWF3 system has been engineered to thread work pieces of up to 10″ thick. All RoboCut’s feature the patented twin servo automatic wire tension control ensuring accurate, straight parts. Above all, the RoboCut CiB-Series EDMs are built 100% in Japan and offer exceptional reliability for which FANUC is known worldwide.
FEATURES & BENEFITS
Discharge Control Ai2
Anti-recast Power Supply
3D Coordinate System Rotation
Thermal Monitoring and Compensation
“Core Stitch” Slug Retention
Fully Integrated 4 and 5-axis for “Turn & Burn” Capability
Auto Wire Feeding AWF3 Measurement Function
FANUC 31i-WB Controller with New iHMI User Interface
Wire Size: .004” to .012”
Inverter Controlled Chiller
CUT-LINKi Offline Cutting Monitor (STD)
Remote PC Capability Wire
Power Savings Mode
Positioning Accuracy: ± .0001”
Rotary Glass Encoder (.000002”)
2 Year Parts/1 Year Labor Standard Warranty
OPTIONS
Full Robotic Automation
Microfinish Power Supply
PCD Power Supply
Large Spool Autoloader
Wire Chopper
3 Condition Light
Soft Wire Threading
30/45 Degree Taper Guides
Renishaw Probe
Auto Grease Lubrication
2 Stage Door
Automatic Door
CAMi Programming Software
