USED FULTON 005DA ISTP

OVERVIEW

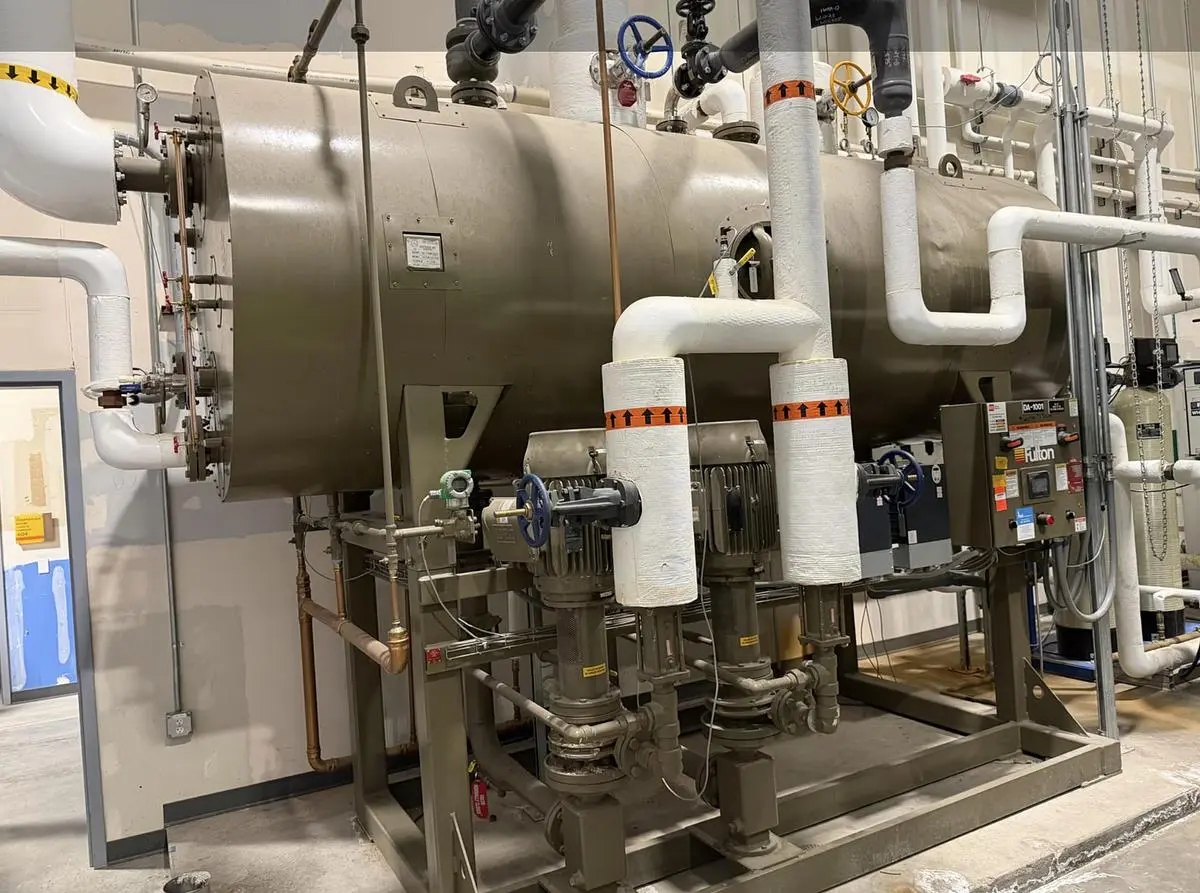

This is a Fulton deaerator (DA) tank system — unit tag DA-1001. Horizontal stainless steel deaerator vessel mounted on a structural steel skid with an integrated Shipco Pumps boiler feed pump set (Unit Model 005DA ISTP, Serial Number F 228). Three vertical inline feedwater pumps with insulated pump bodies, Fulton control panel with Schneider Electric touchscreen HMI, and dual Schneider Electric Altivar 212 variable frequency drives. Electrical supply 480V, 3-Phase, 3-Wire — fed from DP-MD12/9. Ready for inspection — contact us to schedule.

Fulton DA-1001 deaerator system — horizontal cylindrical deaerator tank with spray/tray type oxygen removal, dual sight glass level gauges, and complete steam and water trim. Skid-mounted Shipco triplex pump set rated 71 GPM at 165 PSIG, each pump driven by a 20 HP motor at 460V, 3-Phase. Fulton factory control panel with Schneider Electric Harmony touchscreen and two Schneider Altivar 212 VFDs (15 kW / 480V) for variable-speed pump control. Suitable for boiler feedwater conditioning in industrial and institutional steam plants.

Ideal for boiler feedwater deaeration, industrial steam plants, institutional and campus heating systems, hospital or healthcare steam systems, food and beverage processing, or any application requiring oxygen removal and feedwater conditioning for boiler protection.

EQUIPMENT SPECIFICATIONS

Deaerator System:

Manufacturer: Fulton
Equipment Type: Deaerator (DA) Tank System with Boiler Feed Pump Skid
Unit Tag: DA-1001 (DA-01)
Electrical Supply: 480V, 3-Phase, 3-Wire
Power Feed: DP-MD12/9
Tank Orientation: Horizontal
Tank Construction: Stainless steel
Recorded Hours: P1 6,825 hrs / P2 5,472 hrs (as handwritten on panel)

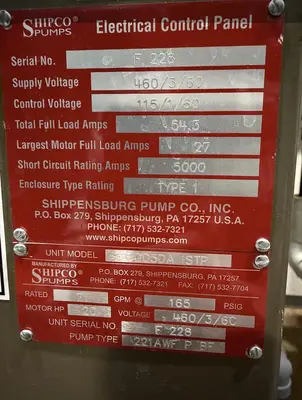

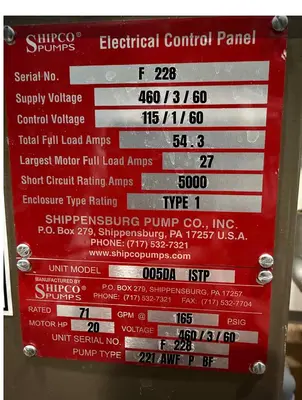

Shipco Pump Skid:

Manufacturer: Shippensburg Pump Co., Inc. (Shipco Pumps) — Shippensburg, PA, USA
Unit Model: 005DA ISTP
Unit Serial Number: F 228
Supply Voltage: 460V, 3-Phase, 60 Hz
Control Voltage: 115V, 1-Phase, 60 Hz
Total Full Load Amps: 54.3
Largest Motor Full Load Amps: 27
Short Circuit Rating: 5,000 Amps
Enclosure Type Rating: Type 1
Rated: 71 GPM @ 165 PSIG
Motor HP: 20 HP (each)
Pump Type: 221 AWF P BF

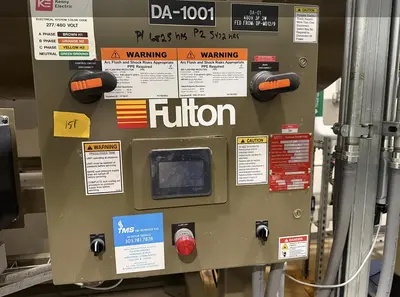

Control System:

Fulton factory control panel
Schneider Electric Harmony touchscreen HMI
Dual Schneider Electric Altivar 212 VFDs — Model ATV212HD15N4, 15 kW, 380/480V
Control circuit disconnect and main disconnect
Auto/Off/Cont pump selector switches and alarm light


KEY FEATURES & BENEFITS

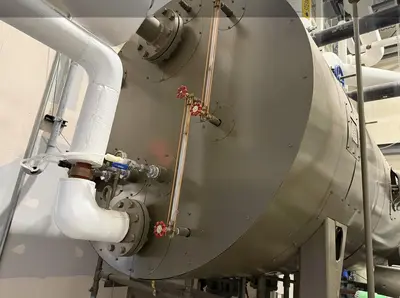

Fulton Deaerator Tank:

Horizontal stainless steel deaerator vessel — boiler feedwater oxygen removal
Spray/tray-type deaeration design
Dual sight glass / gauge glass level indicators with isolation valves
Complete steam and water trim — flanged process connections
Insulated steam inlet and outlet piping


Shipco Triplex Pump Set:

Three vertical inline boiler feed pumps — redundant triplex configuration
Rated 71 GPM at 165 PSIG
20 HP motors — 460V, 3-Phase each
Insulated pump bodies — removable insulation jackets
Stainless steel suction and discharge piping with isolation valves
Mounted on heavy structural steel skid


Fulton Control Panel & Schneider Drives:

Fulton factory-mounted control panel — NEMA enclosure
Schneider Electric Harmony touchscreen HMI — digital operation and monitoring
Dual Schneider Electric Altivar 212 variable frequency drives (15 kW / 480V) — variable-speed pump control
Control circuit disconnect and main disconnect switches
Auto/Off/Continuous pump selector switches
Alarm light and full safety labeling
Phase color code reference (277/480V)


Skid & Construction:

Heavy structural steel skid base — single-piece deaerator and pump assembly
Forklift-accessible base frame
Factory-finish tan/grey paint


SYSTEM COMPONENTS

Deaerator Tank:

Fulton horizontal stainless steel deaerator vessel
Dual gauge glass level indicators with red-handle isolation valves
Steam inlet/outlet trim — insulated
Flanged process and manway connections
Unit tag DA-1001


Pump Skid:

Three Shipco vertical inline boiler feed pumps
20 HP motors — 460V, 3-Phase (each)
Insulated pump bodies
Suction/discharge isolation valves
Shipco Unit Model 005DA ISTP, S/N F 228


Control System:

Fulton control panel with Schneider Electric Harmony touchscreen HMI
Dual Schneider Electric Altivar 212 VFDs (Model ATV212HD15N4, 15 kW, 480V)
Main and control circuit disconnects
Auto/Off/Cont selector switches and alarm light


SPECIFICATIONS SUMMARY

Manufacturer: Fulton (Deaerator) / Shipco Pumps (Pump Skid)
Equipment Type: Deaerator Tank System with Boiler Feed Pump Skid
Unit Tag: DA-1001
Shipco Unit Model: 005DA ISTP
Shipco Serial Number: F 228
Tank: Horizontal stainless steel
Rated Flow: 71 GPM @ 165 PSIG
Pumps: Triplex vertical inline boiler feed pumps
Motor HP: 20 HP each — 460V, 3-Phase
Pump Type: 221 AWF P BF
Total Full Load Amps: 54.3
Control: Fulton panel with Schneider Electric Harmony HMI
VFDs: Dual Schneider Altivar 212 (15 kW, 480V)
Electrical: 480V, 3-Phase, 3-Wire — Fed from DP-MD12/9
Enclosure Rating: Type 1
Condition: Used


ADDITIONAL INFORMATION

Condition: Used
Manufacturer: Fulton (Deaerator) / Shipco Pumps (Pump Skid)
Unit Tag: DA-1001
Shipco Unit Model: 005DA ISTP — S/N F 228
Rated: 71 GPM @ 165 PSIG
Pumps: Triplex 20 HP vertical inline boiler feed pumps included
Control: Fulton panel with Schneider Electric touchscreen and dual Altivar 212 VFDs
Electrical: 480V, 3-Phase, 3-Wire — Fed from DP-MD12/9
Inspection: Welcome — contact us to schedule


IMPORTANT NOTES:

Complete deaerator system — tank, triplex pump skid, control panel, and VFDs included
Boiler feedwater deaeration / oxygen removal — protects downstream boilers
480V 3-Phase supply required
Buyer responsible for transport and rigging arrangements from current location
Contact us for additional photos, video walkthroughs, or technical questions

* Manufacturer: Fulton
* Unit Tag: DA-1001 (DA-01)
* Unit Model: 005DA ISTP
* Unit Serial Number: F 228
* Condition: Used
