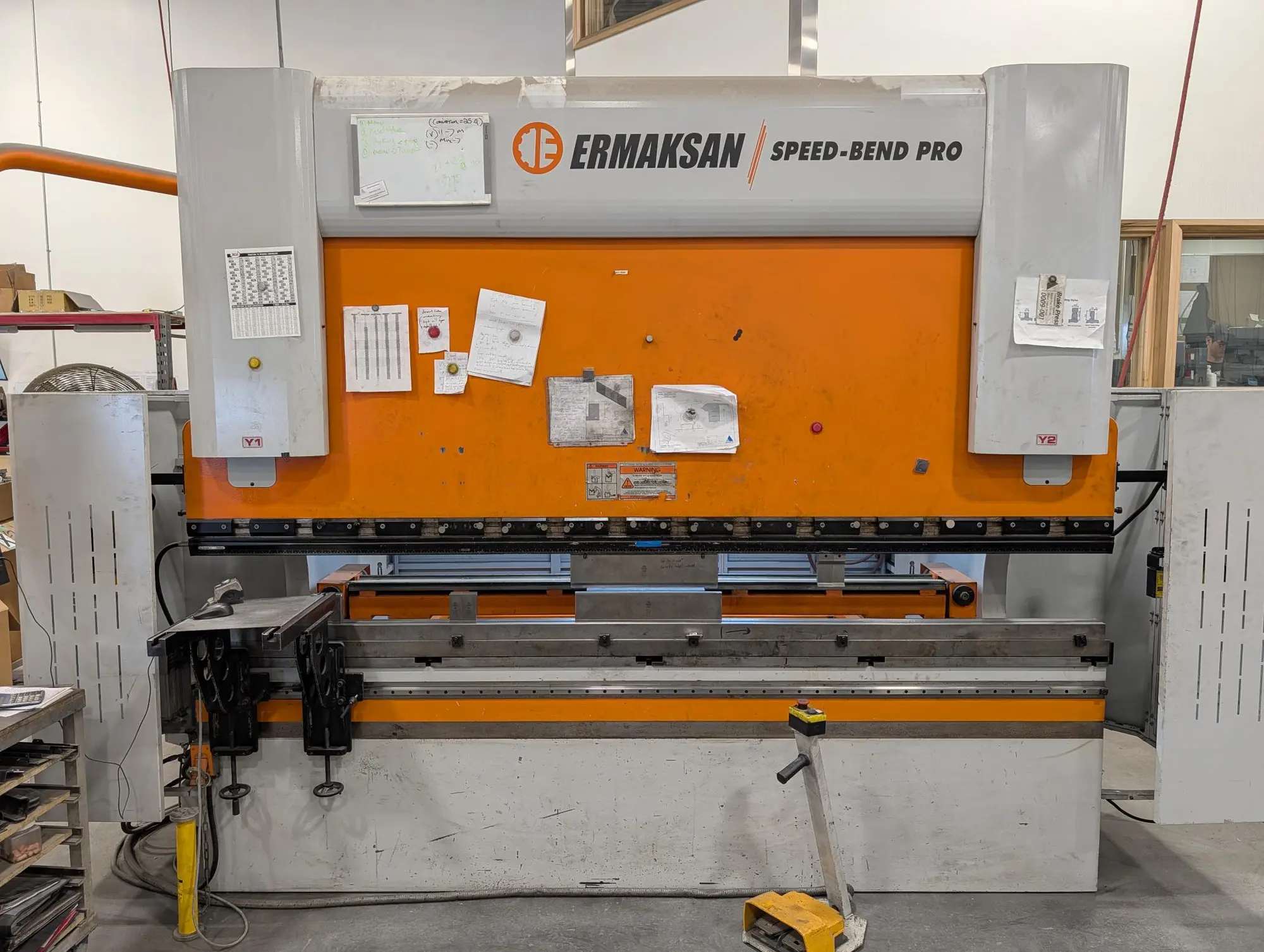

USED 2015 ERMAK SPEED BEND PRO 10X149

Capacity: 149 Ton x 10‘

Capacity: 149 Tons
Bending Length: 10′
Control: ER90 Plus CNC
Backgauge Axes: X, R, Z1, Z2
Y-Axes: Y1, Y2
Approach Speed: 7.8 IPS
Motor Power: 25 HP
Voltage: 575 V
Ingress Protection Rating: IP54
Overall Length: 167.3″
Overall Width: 80.7″
Overall Height: 110.2″
Weight: 17,419 Lbs.
Equipped With:

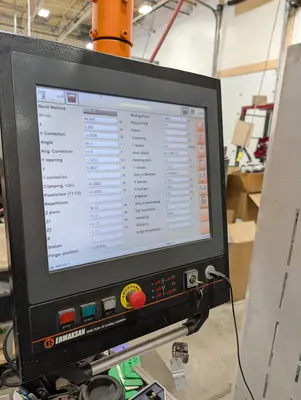

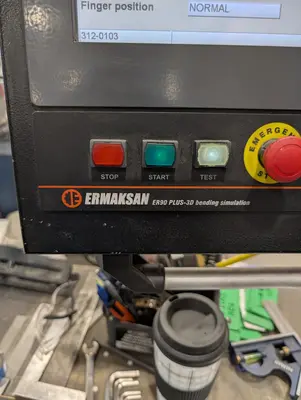

ER90 Plus CNC Control
X R Z1 Z2 CNC Backgauge
Y1 Y2 Ram Axis Control

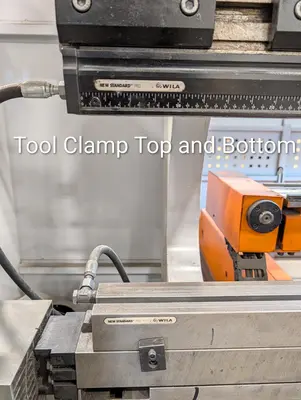

Wila Trumpf Style Hydraulic Top Clamping
Wila Trumpf Style Hydraulic Bottom Clamping
CNC Crowning System
Hydraulic Press Brake Design
Front Support Arms
Safety Guarding
Foot Pedal Control
Precision Linear Scale Feedback System
