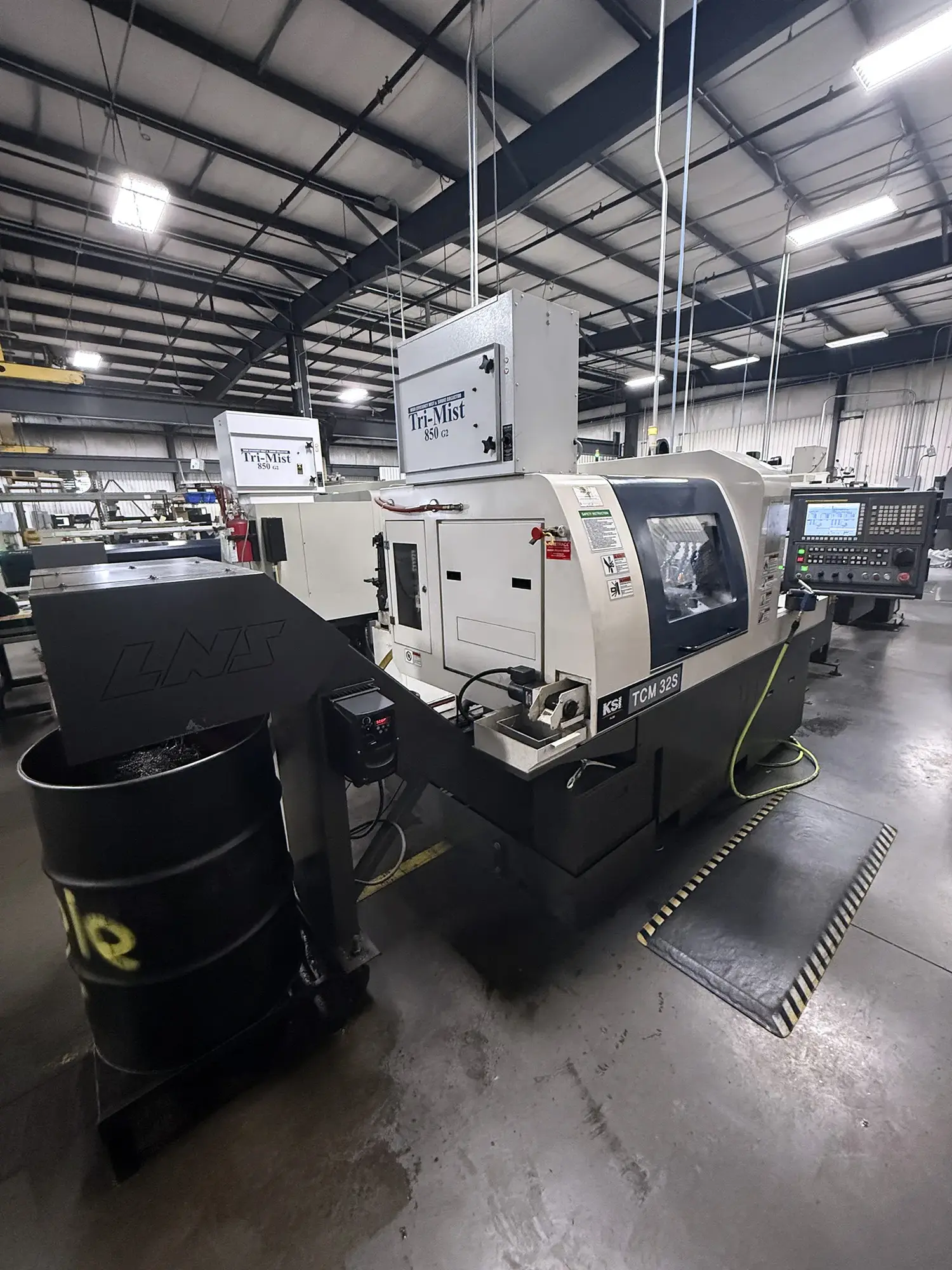

USED 2019 KSI TCM32
Overview
Intelligent Chucking| 7 Axis| Low hours| live tooling
The KSI TCM32S Swiss Lathe (2019) with Fanuc OI-TF Control is engineered for high-precision, high-volume production of complex small-diameter components. Ideal for medical, aerospace, automotive, and electronics industries, it excels at machining bone screws, surgical instruments, fasteners, connectors, pins, shafts, bushings, and hydraulic fittings with exceptional accuracy and repeatability.
Specs

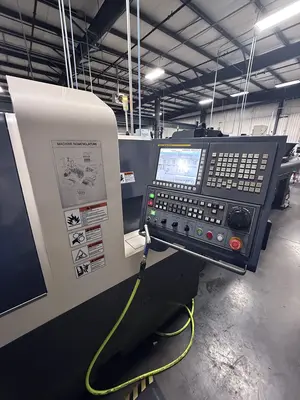

CNC Control: Fanuc Oi-TF
Axes: 7-axis (X, Y, Z, C, and 2 rotary tool axes)
Turning Diameter: Max 1.25" (32 mm)
Turning Length: Max 12.00" (305 mm)
Main Spindle: 10,000 RPM, 10 HP (7.5 kW)
Sub Spindle: 8,000 RPM, 3 HP (2.2 kW)
Cross Spindle: 8,000 RPM, 1.34 HP (1.1 kW)
Back End Spindle: 5,000 RPM, 1.34 HP (1.1 kW)
Weight: 7,716 lbs (3,500 kg)
Dimensions: 118" x 57" x 70" (300 x 145 x 178 mm)

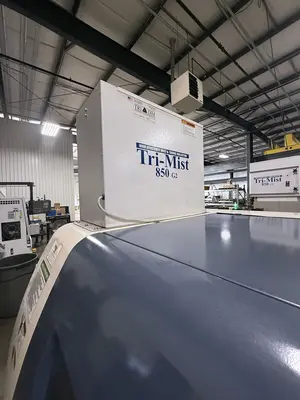

Cooling: 200 L tank, main/sub coolant pumps, chip conveyor, tri-mist cooling system

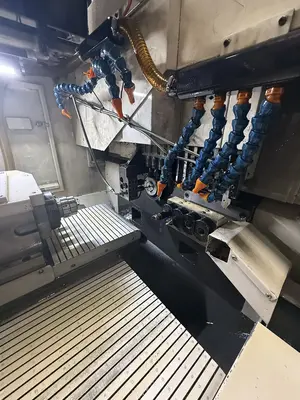

Tooling Capacity: Techspex+1
Main Spindle Block: 6 turning tools (ER16)
Y-Axis Block: 5 turning tools (ER16)
Cross Drilling: 8 mm (M6, ER16)
Cross Tapping: M6 (ER16)
Slotting: Width 1.5 mm x Depth 4 mm
Back End Drilling: 10 mm (M8, ER16)
Back End Tapping: M8 (ER16)
Total Tools: 26 (13 fixed, 9 live)
Equipped With

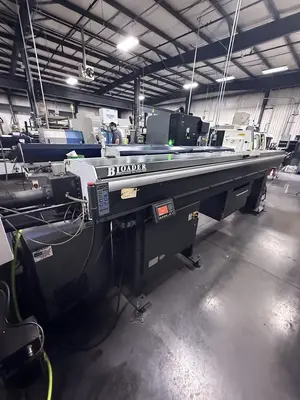

LNS Vito 12' barloader
Trace fire suppression system
Chip Conveyor
6700 run hours
1700 cut hours
Misc. tooling (to be confirmed)
