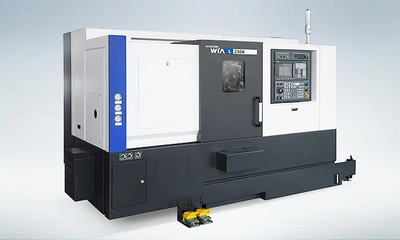

NEW HYUNDAI WIA L230A
Overview
Features
Shortened cycle time to improve productivity.
Adequate machine structure to produce various products.
Adopted angular ball bearing to maintain high-rigidity and low heat absortion.
Strengthened Equipment Sturdiness through Structural Analysis
Applied BMT turret to cut heavy-duty products (Mill Turret Attachment Machine)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 355 mm
Max Turning Length: 440 mm
Chuck Size: 8″ inch
Driving Method: Belt
Spindle RPM: 4,000 r/min
Spindle Output: 15/11 kW
Spindle Torque: 286.6/210.2 N.m
Travel(X/Z): 220/440 mm
Rapid Travel(X/Z): 36/36 m/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size: 25/40 mm
