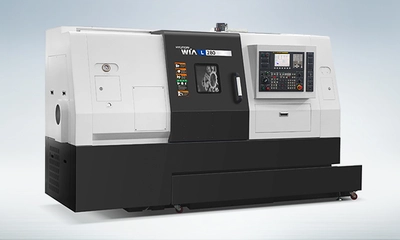

NEW HYUNDAI WIA L280
Overview
Features
Utilizes 140mm (5.5”) cross roller bearings and double angular contact bearings for the main spindle
Equipped with a rigid and reliable servo turret with the best quality in its class
Main body designed with balanced weight to achieve high rigidity and accuracy
A powerful tailstock with thrust of 7,252 N.m
Utilizes the highly efficient SIEMENS 828D (Option)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 16 in
Max Turning Length: 28.35 in
Chuck Size: 10″ in
Driving Method: Belt
Spindle RPM: 3,000 r/min
Spindle Output: 22/18.5 kW
Spindle Torque: 729.5/613.5 N.m
Travel(X/Z): 8.66/29.5 mm
Rapid Travel(X/Z): 787/945 in/min
Slide Type: LM
No. of Tools: 10 EA
Tool Size: 25/50 mm
