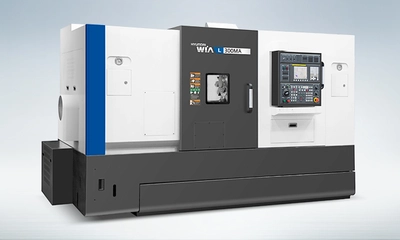

NEW HYUNDAI WIA L300A
Overview
Features
Box guideways on all axis ensuring high rigidity in heavy cutting conditions
Highly Accurate direct drive spindle design and highly sturdy all-in-one structure
Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
Minimized spindle thermal distortion
Gearless type main spindle models are all equipped with a mill turret.
Integrated process realized through use of optional 8″ sub spindle
Big Bore Spindle (L300C Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 500 mm
Max Turning Length: 720 mm
Chuck Size: 10″ inch
Driving Method: GEAR
Spindle RPM: 3,600 r/min
Spindle Output: 22/18.5 kW
Spindle Torque: 755.8/635.5 N.m
Travel(X/Z): 290/750 mm
Rapid Travel(X/Z): 20/24 m/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size: 25/50 mm
