NEW HYUNDAI WIA L300MSA
Overview

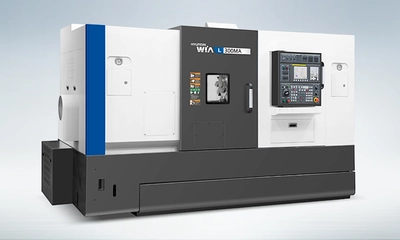

Hyundai Wia L300MSA
Features
Box guideways on all axis ensuring high rigidity in heavy cutting conditions
Highly Accurate direct drive spindle design and highly sturdy all-in-one structure
Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
Minimized spindle thermal distortion
Gearless type main spindle models are all equipped with a mill turret.
Integrated process realized through use of optional 8″ sub spindle
Big Bore Spindle (L300C Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 410 410
Max Turning Length: 680 680
Chuck Size: Main 10″
Sub 8″ 10″
Driving Method: Belt Belt
Spindle RPM: 3,500 3,500
Spindle Output: 22/18.5 22/18.5
Spindle Torque: 493.2/414.7 493.2/414.7
Travel(X/Z): 290/750/700 290/750
Rapid Travel(X/Z): 20/24/20 20/24
Slide Type: BOX BOX
No. of Tools: 12 12
Tool Size: 25/50 25/50
Milling Tool Speed: 4,000 4,000
