NEW HYUNDAI WIA L280LM
Overview

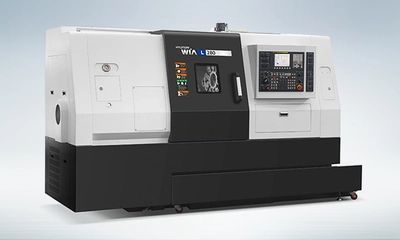

Hyundai Wia L280LM
Features
Utilizes 140mm (5.5”) cross roller bearings and double angular contact bearings for the main spindle
Equipped with a rigid and reliable servo turret with the best quality in its class
Main body designed with balanced weight to achieve high rigidity and accuracy
A powerful tailstock with thrust of 7,252 N.m
Utilizes the highly efficient SIEMENS 828D (Option)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 300 410
Max Turning Length: 1000 1070
Chuck Size: 10″ 10″
Driving Method: Belt Belt
Spindle RPM: 3,500 3,000
Spindle Output: 22/18.5 22/18.5
Spindle Torque: 493.2/414.7 729.5/613.5
Travel(X/Z): 220/1,120 220/1,100
Rapid Travel(X/Z): 20/24 20/24
Slide Type: LM LM
No. of Tools: 12 10
Tool Size: 25/50 25/50
Milling Tool Speed: 4,000
