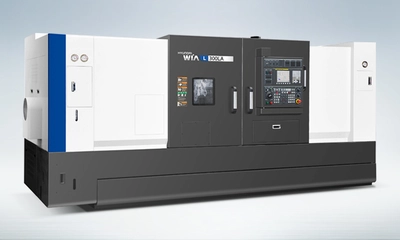

NEW HYUNDAI WIA L300LMSA
Overview
Hyundai Wia L300LMSA
Features
Sturdiness secured through the adoption of an all Axis box guide
Highly accurate direct link and highly sturdy all-in-one structure
Highly accurate pretension double-anchor method
Minimized heat deformation in the main spindle
Gearless type main spindle models are all equipped with a mill turret.
Integrated process realized through adoption of 8″ sub spindle : models equipped with sub spindle
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 410 410
Max Turning Length: 1,250 1,280
Chuck Size: Main 10″
Sub 8″ 10″
Driving Method: Belt Belt
Spindle RPM: 3,500 3,500
Spindle Output: 22/18.5 22/18.5
Spindle Torque: 493.2/414.7 493.2/414.7
Travel(X/Z): 290/1,350/1,200 290/1,350
Rapid Travel(X/Z): 20/24/20 20/24
Slide Type: BOX BOX
No. of Tools: 12 12
Tool Size: 25/50 25/50
Milling Tool Speed: 4,000 4,000
