NEW HYUNDAI WIA L300MC
Overview

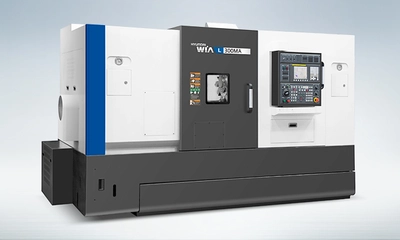

Hyundai Wia L300MC
Features
Sturdiness secured through the adoption of an all Axis box guide
Highly accurate direct link and highly sturdy all-in-one structure
Highly accurate pretension double-anchor method
Minimized heat deformation in the main spindle
Gearless type main spindle models are all equipped with a mill turret.
Integrated process realized through adoption of 8″ sub spindle : models equipped with sub spindle
Big Bore Spindle (L300C Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 500 mm
Max Turning Length: 600 mm
Chuck Size: 12″ inch
Driving Method: Belt
Spindle RPM: 3,000 r/min
Spindle Output: 22/18.5 kW
Spindle Torque: 786.9/661.7 N.m
Travel(X/Z): 355/750 mm
Rapid Travel(X/Z): 20/24 m/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size: 25/50 mm
Milling Tool Speed: 4,000 r/min
