NEW HYUNDAI WIA L400MA
Overview

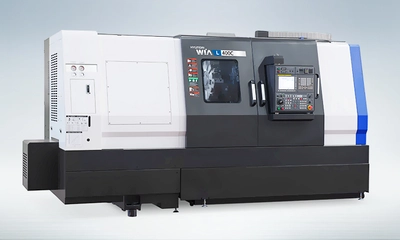

Hyundai Wia L400MA
Features
Sturdiness secured through the adoption of an all axis box guide
All-in-one type structure with direct link for high accuracy and sturdiness
Based on double anchor method for high accuracy pretension
Minimized heat deformation in the main spindle
Two-Step gear box drives the main spindle across the L400 range. (L400MA : Belt)
Big Bore Spindle (L400C Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 570 640
Max Turning Length: 1,180 1,180
Chuck Size: 12″ 12″
Driving Method: Belt GEAR
Spindle RPM: 3,000 3,000
Spindle Output: 30/20 26/22
Spindle Torque: 797/585 1,325/1,120
Travel(X/Z): 325/1,205 325/1,205
Rapid Travel(X/Z): 20/25 20/25
Slide Type: BOX BOX
No. of Tools: 12 12
Tool Size: 25/50 25/50
Milling Tool Speed: 4,000
