NEW HYUNDAI WIA LV1400
Overview

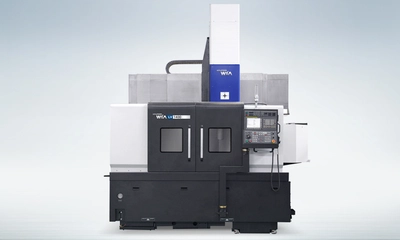

Hyundai Wia LV1400
Features
Strengthened heavy-duty cutting ability with 2-step geared drive for tables
Main spindle designed with cross roller bearing and box guideway in all axes bring rigidity
Highly rigid table structure for heavy load
Hydraulic cylinder type 3-step moving crossrail structure(LV2000MM)
Various Machining provided: Turning, tapping, milling, grinding etc.(LV2000MF/2000MM)
Linear scale on all axes as standard
Specs
Max Turning Dia: 55.12 in
Max Turning Length: 33.46 in
Chuck Size: 40 in
Driving Method: Belt
Spindle RPM: 492 r/min
Spindle Output: 30/37 kW
Spindle Torque: 6,515/8,035 N.m
Travel(X/Z): -1.7 ~ +32.48/31.5 in
Rapid Travel(X/Z): 472/472 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size: 32/20 mm
