NEW HYUNDAI WIA LV2000MM
Overview

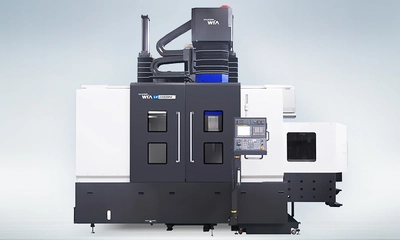

Hyundai Wia LV2000MM
Features
Heavy-duty cutting ability with 2-step geared drive for tables
Main spindle designed with precision angular contact bearings and box guideways in all axes for heavy duty machining applications and providing long machine life
Highly rigid table structure for heavy load capacity
Hydraulic cylinder type 3-step moving crossrail structure (LV2000MM)
Variety of Machining functions possible : Turning, tapping, milling, grinding etc. (LV2000MF/2000MM)
Linear scale on all axes are standard
Specs
Max Turning Dia: 78.74 in
Max Turning Length: 67 in
Chuck Size: 63 in
Driving Method: GEAR
Spindle RPM: 258 r/min
Spindle Output: 30/37 kW
Spindle Torque: 17,916/22,096 N.m
Travel(X/Z): -9.8 ~ +1,46.5/36 in
Rapid Travel(X/Z): 472/472 in/min
Slide Type: BOX
No. of Tools: 18 EA
Tool Size: 32/25 mm
Milling Tool Speed: 2,400 r/min
