NEW HYUNDAI WIA LM1600TTSY
Overview

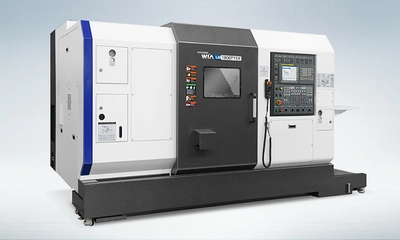

Hyundai Wia LM1600TTSY
Features
Large output built-In spindle motor
High productivity guaranteed with simultaneous utilization of upper and lower turrets
Robust BMT turret
Multitasking is possible with the addition of Y axis to the upper turret (TTSY specifications)
Integrated processing through synchronized control of Main and Sub Spindle
Design of the hybrid slideway, combining box guideway(X/Y-axis) and roller guideway(Z-axis) (LM1600/1800TT Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 9 in
Max Turning Length: 27.75 in
Chuck Size: Main 6″
Sub 6″ in
Driving Method: Built in
Spindle RPM: 6,000 r/min
Spindle Output: 11/15 kW
Spindle Torque: 140/208 N.m
Travel(X1/X2/Z1/Z2/ZB/Y): 6.5/7.7/27.5/28/27.5/3.9 in
Rapid Travel(X1/X2/Z1/Z2/ZB/Y): 787/787/1575/1575/1575/295 in/min
Slide Type: LM
No. of Tools: 2 x 12 EA
Tool Size: 20/32 mm
Milling Tool Speed: 5,000 r/min
