NEW HYUNDAI WIA LM1800TTSY
Overview

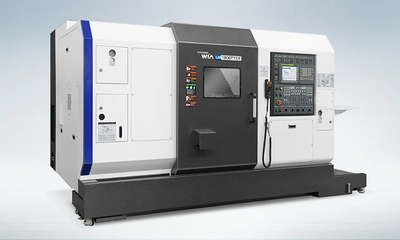

Hyundai Wia LM1800TTSY
Features
Large output built-In spindle motor
High productivity guaranteed by adoption of upper and lower turrets
Highly sturdy BMT turret adopted
Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)
Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle
High degree of sturdiness achieved by adopting all axis box guide (LM2500TT Series)
Design of the hybrid-type feed shaft combining box guide and roller guide (LM1600/1800TT Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 9 in
Max Turning Length: 26.5 in
Chuck Size: Main 8″
Sub 8″ inch
Driving Method: Built in
Spindle RPM: 5,000 r/min
Spindle Output: 11/22 kW
Spindle Torque: 214/358 N.m
Travel(X1/X2/Z1/Z2/ZB/Y): 6.5/7.7/27.6/
28/26/3.9 in
Rapid Travel(X1/X2/Z1/Z2/ZB/Y): 787/787/1575/
1575/1575/295 m/min
Slide Type: LM
No. of Tools: 2 x 12 EA
Tool Size: 20/32 mm
Milling Tool Speed: 5,000 r/min
