NEW HYUNDAI WIA LM2500TTSY
Overview

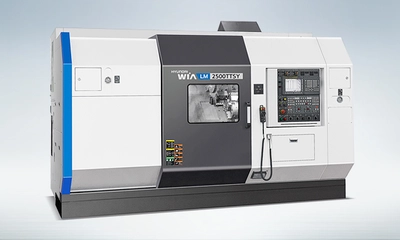

Hyundai Wia LM2500TTSY
Features
Large output built-In spindle motor
High productivity guaranteed by adoption of upper and lower turrets
Highly sturdy BMT turret adopted
Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)
Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle
High degree of sturdiness achieved by adopting all axis box guide (LM2500TT Series)
Design of the hybrid-type feed shaft combining box guide and roller guide (LM1600/1800TT Series)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Specs
Max Turning Dia: 15 in
Max Turning Length: 35 in
Chuck Size: Main 10″
Sub 10″ in
Driving Method: Built in
Spindle RPM: 4,000 r/min
Spindle Output: 15/26 kW
Spindle Torque: 295/433 N.m
Travel(X1/X2/Z1/Z2/ZB/Y): 10.6/7.5/36/
36/36/4.7 in
Rapid Travel(X1/X2/Z1/Z2/ZB/Y): 945/945/945/
945/945/472 in/min
Slide Type: BOX
No. of Tools: 2 x 12 EA
Tool Size: 25/50 mm
Milling Tool Speed: 4,000 r/min
