NEW HYUNDAI WIA F410D
Overview

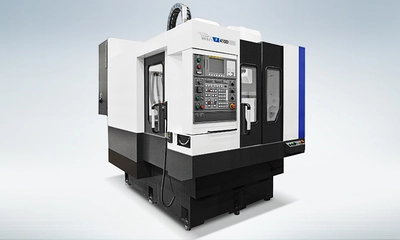

Hyundai Wia F410D
Features
High-precision P4 Angular Contact Bearing main spindle
High-powered, high-torque main spindle for heavy duty cutting
Dual Tables for high productivity
Latest Servo ATC technology for the fastest tool change in its class
Roller LM Guide X & Y Axis for optimal feed (F500D)
Z axis Box Guideways for high precision heavy cutting (F600D)
Latest SIEMENS 828D controls with wide range of supporting software (option)
Specs
Table Size: 2 – 650×410 mm
Max. Load Capacity: 2 – 250 kg
Spindle Driving Method: Belt
Spindle Taper: BT40
Spindle RPM: 10,000 r/min
Spindle Power: 18.5/15 kW
Spindle Torque: 117.7/95.4 N.m
Travel(X/Y/Z): 570/410/580 mm
Rapid Feed Rate(X/Y/Z): 36/36/30 m/min
Slide Type: LM
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 3.5 sec
