NEW HYUNDAI WIA F510B
Overview

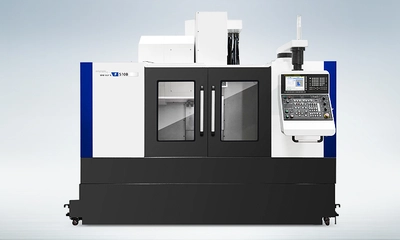

Hyundai Wia F510B
Features
Gear driven main spindle equipped with super precision angular contact bearings
High-powered, high-torque main spindle for superb heavy duty cutting
Box guideways for exceptional feedrates during heavy duty cutting
Latest Servo ATC technology for highly efficient tool change
Specs
Table Size: 1,200×500 mm
Max. Load Capacity: 800 kg
Spindle Driving Method: Belt
Spindle Taper: BT40
Spindle RPM: 8,000 r/min
Spindle Power: 15/11 kW
Spindle Torque: 287/143 N.m
Travel(X/Y/Z): 1,100/510/635 mm
Rapid Feed Rate(X/Y/Z): 30/30/24 m/min
Slide Type: BOX
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 4.8 sec
