NEW HYUNDAI WIA F650
Overview

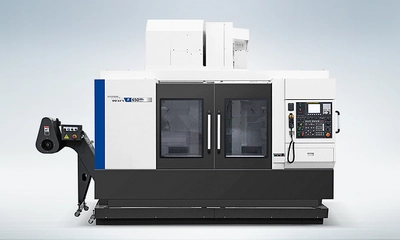

Hyundai Wia F650
Features
High accuracy headstock features a high precision angular contact bearing
High power, high torque headstock for precision in cutting
Latest Servo ATC implementation for the quickest tool exchange
Fast feeding through the 4 Way Y-axis (F650 Plus, F650/50)
Front Roller Guide Way for high accuracy cutting (F500/50, F650/50)
Latest SIEMENS 828D controls with wide range of supporting software (F400)
Specs
Table Size: 1600×650 mm
Max. Load Capacity: 1300 kg
Spindle Driving Method: Belt
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 15/11 kW
Spindle Torque: 286/143 N.m
Travel(X/Y/Z): 1400/660/635 mm
Rapid Feed Rate(X/Y/Z): 36/36/30 m/min
Slide Type: LM
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.8 sec
